TPN3021RL - STMicroelectronics

Description: 28V Off-State 100 A Ipp TVS Thyristor 8-SOIC (0.154", 3.90mm Width)

Download TPN3021RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

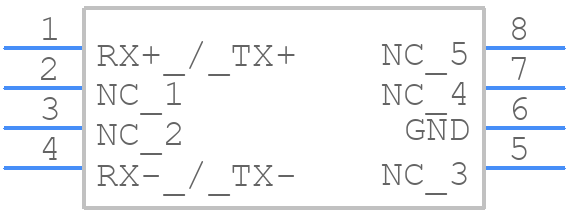

TPN3021RL - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TPN3021RL - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
TPN3021RL - STMicroelectronics - 3D model - Small Outline Packages - SO-8
click to zoom

TPN3021RL Details

  • Manufacturer Part Number:

    TPN3021RL

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Breakover Voltage-Max:

    38 V

  • Configuration:

    DELTA CONNECTED, 3 ELEMENTS

  • DC Off-state Voltage-Max:

    28 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-Repetitive Pk On-state Cur:

    9 A

  • Number of Elements:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Trigger Device Type:

    SILICON SURGE PROTECTOR

TPN3021RL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TPN3021RL is -40°C to 150°C.
  • To ensure reliability, follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure proper heat sinking and cooling mechanisms are in place.
  • STMicroelectronics provides a recommended PCB layout and thermal pad design in the datasheet and application notes. Follow these guidelines to ensure optimal thermal performance and reliability.
  • Yes, the TPN3021RL is suitable for high-power audio amplifier applications due to its high current capability and low RDS(on). However, ensure proper thermal management and follow the recommended design guidelines.
  • Implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the device. You can use external components or integrated circuits specifically designed for OVP and OCP.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPN3021RL Overview

Use the download button to access the TPN3021RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPN30, or try a keyword search, such as Silicon Surge Protectors
