TPP38002 - 3Peak Incorporated

Description: Wide Supply Voltage: 4.5 V to 36 V • Absolute Maximum Voltage: 42 V • Internal Power FET: 180 mΩ and 90 mΩ • 0.6-V Reference Voltage with 2% Accuracy • High-Efficiency Synchronous-Mode Operation • 500-kHz Fixed Switching Frequency • Low 2-μA Shutdown, 70-μA Quiescent Current

Download TPP38002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

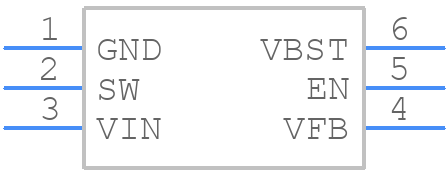

TPP38002 - 3Peak Incorporated - PCB symbol
