Please enter a minimum 3 letters or numbers
Technical Content
Part Image

TPSC107K006R0075 - Kyocera AVX

Description: AVX Tantalum Capacitor 100μF 6.3V dc Electrolytic Solid ±10% Tolerance , TPS

Download TPSC107K006R0075 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSC107K006R0075 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

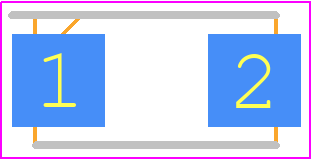

TPSC107K006R0075 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - CASE C-1
click to zoom
3D Models
TPSC107K006R0075 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - CASE C-1
click to zoom

TPSC107K006R0075 Details

  • Manufacturer Part Number:

    TPSC107K006R0075

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    100 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    75 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0063 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    484 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TPSC107K006R0075 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TPSC107K006R0075 can be found in the Kyocera AVX Components' recommended land pattern document, which is typically available on their website or through their customer support. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
  • The TPSC107K006R0075 has a high power density, and proper thermal management is crucial to ensure reliable operation. Engineers should consider using thermal vias, thermal pads, or heat sinks to dissipate heat. Additionally, they should ensure good airflow around the component and avoid blocking airflow with other components or obstacles.
  • The maximum operating temperature range for the TPSC107K006R0075 is -55°C to 125°C. However, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. Engineers should consult the datasheet and application notes for specific guidance on temperature-related considerations.
  • The TPSC107K006R0075 is designed to withstand moderate vibration levels. However, in high-vibration environments, engineers should consider using additional mechanical support or potting the component to ensure reliable operation. It's also essential to consult the datasheet and application notes for specific guidance on vibration-related considerations.
  • To ensure the reliability of the TPSC107K006R0075 in a humid environment, engineers should consider using conformal coating, potting, or hermetic sealing to protect the component from moisture. Additionally, they should ensure good airflow and avoid condensation around the component.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSC107K006R0075 Overview

Use the download button to access the TPSC107K006R0075 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSC1, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.

Parts related to TPSC107K006R0075

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

TPSC107K006R0075 Alternates

Showing results

Image Part Number Model
Part Image TAJW107K006YNJ Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2312, CHIP, ROHS COMPLIANT
Part Image TPSC107K006B150 Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2312, CHIP, LEAD FREE
Part Image TPSC107K6R0075 Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2312, CHIP, LEAD FREE
Part Image TRJC107K006H0300 Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2312, CHIP
Part Image TRJC107K006R0300 Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2312, CHIP
For a full list of alternate parts for TPSC107K006R0075, check out Findchips.com
