Please enter a minimum 3 letters or numbers
Technical Content
Part Image

TPSC107K010R0075 - Kyocera AVX

Description: AVX Tantalum Capacitor 100μF 10V dc MnO2 Solid ±10% Tolerance TPS Series

Download TPSC107K010R0075 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSC107K010R0075 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

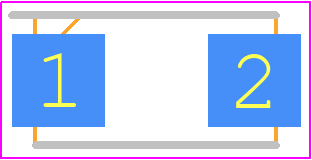

TPSC107K010R0075 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - TPSC107K010R0075
click to zoom
3D Models
TPSC107K010R0075 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - TPSC107K010R0075
click to zoom

TPSC107K010R0075 Details

  • Manufacturer Part Number:

    TPSC107K010R0075

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    100 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    75 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.01 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    10 V

  • Ripple Current:

    484 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TPSC107K010R0075 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TPSC107K010R0075 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
  • The TPSC107K010R0075 has a high power density, and proper thermal management is crucial to ensure reliable operation. Engineers should consider using thermal vias, thermal pads, and heat sinks to dissipate heat. Additionally, they should ensure good airflow and avoid blocking airflow around the component.
  • The maximum operating temperature range for the TPSC107K010R0075 is -55°C to 125°C. However, the component's performance and reliability may degrade if operated at the extreme ends of this range. Engineers should consider the specific application requirements and ensure the component is operated within a safe temperature range.
  • To ensure the reliability of the TPSC107K010R0075 in high-vibration environments, engineers should consider using underfill material to secure the component to the PCB, and ensure the PCB is properly secured to the chassis or enclosure. Additionally, they should consider using vibration-dampening materials and ensure the component is properly soldered and secured to the PCB.
  • The recommended soldering profile for the TPSC107K010R0075 can be found in the Kyocera AVX Components' soldering guidelines document, which is available on their website. The document provides detailed information on the recommended soldering temperature, time, and other parameters to ensure reliable solder joints.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSC107K010R0075 Overview

Use the download button to access the TPSC107K010R0075 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSC1, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.

Suggested Parts

If you searched for TPSC107K010R0075, you might also be interested in these parts:
Part Number
B140HB-13-F
SRR0604-680KL
S1A
FTR-J2AK110W
TLV2462IP
LMC7101BIM5
OPA376AIDRG4
SN75176BDRE4
BLUENRG-M2SP

Parts related to TPSC107K010R0075

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

TPSC107K010R0075 Alternates

Showing results

Image Part Number Model
Part Image TBJC107K010RSLC0H23 Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum, 10V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2312, CHIP
Part Image TBJC107K010RWLB0H45 Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum, 10V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2312, CHIP
Part Image TBJC107K010JRLZ0900 Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum, 10V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2312, CHIP
Part Image TBJC107K010RWLZ0H00 Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum, 10V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2312, CHIP
Part Image TBJC107K010LWLC0000 Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 10% +Tol, 10% -Tol, 100uF, 2412,
For a full list of alternate parts for TPSC107K010R0075, check out Findchips.com
