TPSC107M010R0100 - Kyocera AVX

Description: Tantalum Capacitors - Solid SMD 100uF 10V 20% L ESR

Download TPSC107M010R0100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSC107M010R0100 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

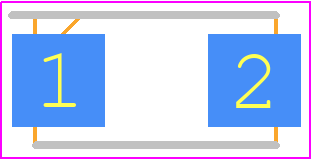

TPSC107M010R0100 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - SIZE CODE C
click to zoom
3D Models
TPSC107M010R0100 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - SIZE CODE C
click to zoom

TPSC107M010R0100 Details

  • Manufacturer Part Number:

    TPSC107M010R0100

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    100 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    100 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.01 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Ripple Current:

    420 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TPSC107M010R0100 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TPSC107M010R0100 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
  • The TPSC107M010R0100 has a high power density, and proper thermal management is crucial to ensure reliable operation. Engineers should consider using thermal interface materials, heat sinks, and thermal vias to dissipate heat effectively. Additionally, they should follow the recommended PCB layout and thermal design guidelines provided by Kyocera AVX Components.
  • The maximum operating temperature range for the TPSC107M010R0100 is -55°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. Engineers should consider the specific application requirements and ensure that the device operates within a safe temperature range.
  • The TPSC107M010R0100 is designed to withstand moderate vibration levels. However, engineers should consider the specific vibration requirements of their application and ensure that the device is properly secured to the PCB using recommended mounting techniques and materials. Additionally, they should consult with Kyocera AVX Components' application engineers for specific guidance on using the device in high-vibration environments.
  • To ensure the reliability of the TPSC107M010R0100 in high-humidity environments, engineers should follow proper moisture-sensitive device handling and storage procedures. They should also consider using conformal coatings, potting compounds, or other environmental protection methods to prevent moisture ingress. Additionally, they should consult with Kyocera AVX Components' application engineers for specific guidance on using the device in high-humidity environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSC107M010R0100 Overview

Use the download button to access the TPSC107M010R0100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSC1, or try a keyword search, such as Tantalum Capacitors
