TPSC226M016R0150 - Kyocera AVX

Description: Cap Tant Solid 22uF 16V C CASE 20% (6 X 3.2 X 2.6mm) Inward L SMD 6032-28 0.15 Ohm 125°C T/R

Download TPSC226M016R0150 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSC226M016R0150 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

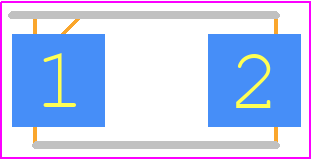

TPSC226M016R0150 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - c case
click to zoom
3D Models
TPSC226M016R0150 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - c case
click to zoom

TPSC226M016R0150 Details

  • Manufacturer Part Number:

    TPSC226M016R0150

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    22 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    150 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0035 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    343 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TPSC226M016R0150 Frequently Asked Questions (FAQs)

  • The recommended land pattern for TPSC226M016R0150 can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • Thermal management is critical for the reliability and performance of TPSC226M016R0150. Engineers should ensure that the component is mounted on a thermally conductive material, such as a copper or aluminum heat sink, and that there is adequate airflow around the component. Additionally, the component's thermal impedance should be considered in the design to ensure that it does not exceed the maximum operating temperature.
  • The maximum operating voltage for TPSC226M016R0150 is 16V, as specified in the datasheet. However, it's essential to note that the component's voltage rating may be derated depending on the operating temperature and other environmental factors.
  • Yes, TPSC226M016R0150 is suitable for high-frequency applications up to 100MHz. However, engineers should consider the component's equivalent series resistance (ESR) and equivalent series inductance (ESL) when designing for high-frequency applications to ensure optimal performance.
  • To ensure the reliability of TPSC226M016R0150 in a humid environment, engineers should consider using conformal coating or potting compounds to protect the component from moisture. Additionally, the component's moisture sensitivity level (MSL) should be considered during the design and manufacturing process to prevent damage during reflow soldering.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSC226M016R0150 Overview

Use the download button to access the TPSC226M016R0150 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSC2, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
