TPSC335K035R0700 - Kyocera AVX

Description: AVX 3.3μF SMD Solid MnO2 Tantalum Electrolytic Capacitor, 35 V dc ±10%, TPS Series

Download TPSC335K035R0700 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSC335K035R0700 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

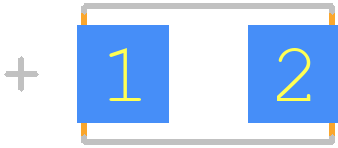

TPSC335K035R0700 - Kyocera AVX PCB footprint - Other - Other - CAPCP6032X280N
click to zoom
3D Models
TPSC335K035R0700 - Kyocera AVX - 3D model - Other - CAPCP6032X280N
click to zoom

TPSC335K035R0700 Details

  • Manufacturer Part Number:

    TPSC335K035R0700

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.78

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    3.3 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    700 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0012 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    159 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TPSC335K035R0700 Frequently Asked Questions (FAQs)

  • The recommended land pattern for TPSC335K035R0700 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
  • The TPSC335K035R0700 has a high power density, and proper thermal management is crucial to ensure reliable operation. It is recommended to use a heat sink or a thermal interface material to dissipate heat. The datasheet provides thermal resistance values, which can be used to estimate the junction temperature.
  • The maximum operating voltage for TPSC335K035R0700 is 35V, as specified in the datasheet. Exceeding this voltage may damage the component or affect its reliability.
  • Yes, the TPSC335K035R0700 is suitable for high-frequency applications. The component has a low equivalent series resistance (ESR) and a high self-resonant frequency, making it suitable for high-frequency circuits. However, it is essential to consider the component's impedance characteristics and ensure that it meets the specific requirements of the application.
  • To ensure the reliability of TPSC335K035R0700 in a humid environment, it is recommended to follow the manufacturer's guidelines for moisture sensitivity and storage. Additionally, conformal coating or potting can be used to protect the component from moisture. It is also essential to follow proper handling and storage procedures to prevent damage.
