TPSE477M010R0045 - Kyocera AVX

Description: AVX 470μF Solid Electrolytic Electrolytic Capacitor, 10 V dc ±20%, TPS Series

Download TPSE477M010R0045 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSE477M010R0045 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

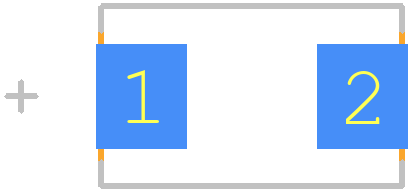

TPSE477M010R0045 - Kyocera AVX PCB footprint - Other - Other - CAPCP7343X430N
click to zoom
3D Models
TPSE477M010R0045 - Kyocera AVX - 3D model - Other - CAPCP7343X430N
click to zoom

TPSE477M010R0045 Details

  • Manufacturer Part Number:

    TPSE477M010R0045

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.98

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    470 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    45 mΩ

  • Height:

    4.1 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.047 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Ripple Current:

    766 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

TPSE477M010R0045 Frequently Asked Questions (FAQs)

  • The recommended land pattern for TPSE477M010R0045 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
  • To prevent damage, handle the component by the edges, avoid touching the component's electrical contacts, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Also, ensure the assembly area is clean and free from debris.
  • The maximum operating temperature range for TPSE477M010R0045 is -55°C to +125°C, as specified in the datasheet. However, it's essential to note that the component's performance may degrade at extreme temperatures, and the designer should consider this when designing the system.
  • Yes, TPSE477M010R0045 is designed to withstand high-vibration environments. However, it's essential to ensure that the component is properly mounted and secured to the PCB to prevent mechanical stress and damage. Consult the datasheet and application notes for more information on vibration testing and requirements.
  • Store TPSE477M010R0045 components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. The storage area should be clean, dry, and free from contaminants. Follow the manufacturer's storage guidelines and recommendations to maintain the component's shelf life.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TPSE477M010R0045 Overview

Use the download button to access the TPSE477M010R0045 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSE4, or try a keyword search, such as Tantalum Capacitors
