TPSV686M035R0150 - Kyocera AVX

Description: AVX Tantalum Capacitor 68μF 35V dc Electrolytic Solid, TPS

Download TPSV686M035R0150 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSV686M035R0150 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

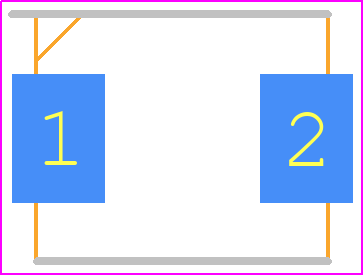

TPSV686M035R0150 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - Case V
click to zoom
3D Models
TPSV686M035R0150 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - Case V
click to zoom

TPSV686M035R0150 Details

  • Manufacturer Part Number:

    TPSV686M035R0150

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.75

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    68 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    150 mΩ

  • Height:

    3.55 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0238 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    516 mA

  • Size Code:

    2924

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    6.1 mm

TPSV686M035R0150 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TPSV686M035R0150 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
  • To prevent damage, it is recommended to handle the TPSV686M035R0150 by the edges, avoiding touching the electrical contacts. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage. Also, avoid bending or flexing the component during assembly.
  • The maximum operating temperature range for the TPSV686M035R0150 is -55°C to +125°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and the operating temperature range may vary depending on the specific application.
  • The TPSV686M035R0150 is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with Kyocera AVX Components' technical support to determine the component's suitability for your specific use case.
  • To maintain the shelf life of the TPSV686M035R0150, store the components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid exposing the components to electrostatic discharge, and keep them away from contaminants such as dust and chemicals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSV686M035R0150 Overview

Use the download button to access the TPSV686M035R0150 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSV6, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
