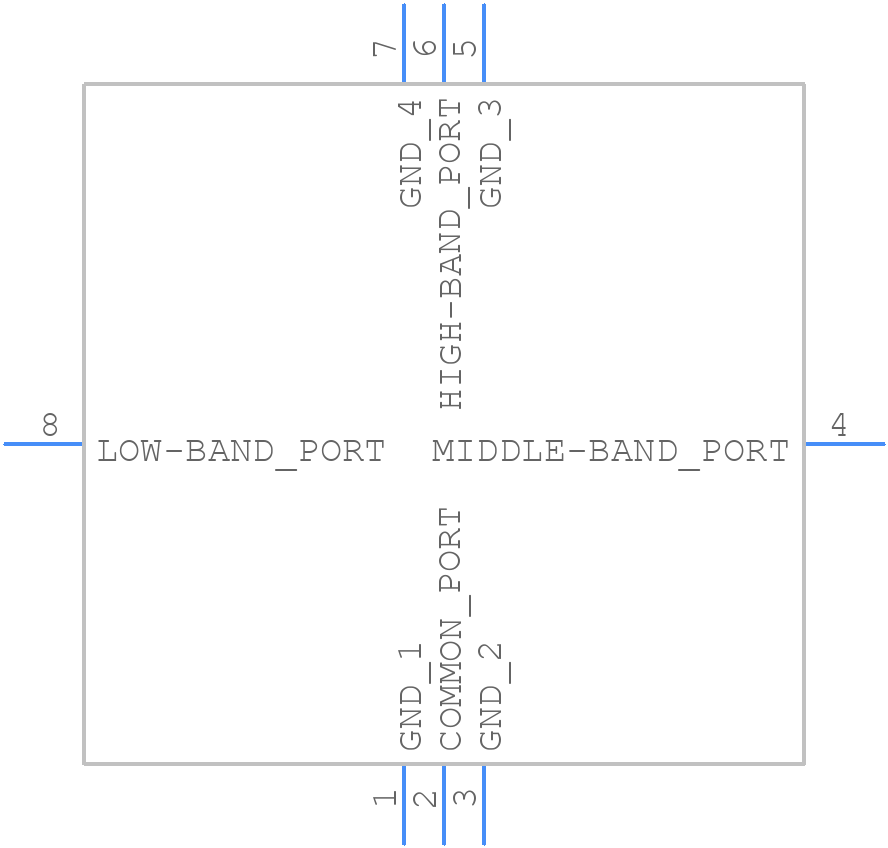

TPX205950MT-7010A1 - TDK

TPX205950MT-7010A1 Frequently Asked Questions (FAQs)

• What is the recommended land pattern for TPX205950MT-7010A1?
  The recommended land pattern for TPX205950MT-7010A1 can be found in the TDK Corporation's application note or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal issues.
• How do I handle the thermal management of TPX205950MT-7010A1?
  To handle thermal management, ensure that the device is mounted on a heat sink or a thermal pad, and that the PCB is designed with thermal vias to dissipate heat efficiently. Additionally, consider using thermal interface materials to reduce thermal resistance.
• What is the maximum operating temperature range for TPX205950MT-7010A1?
  The maximum operating temperature range for TPX205950MT-7010A1 is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range.
• Can I use TPX205950MT-7010A1 in a high-vibration environment?
  Yes, TPX205950MT-7010A1 is designed to withstand vibrations and can be used in high-vibration environments. However, it's crucial to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
• How do I ensure the reliability of TPX205950MT-7010A1 in a humid environment?
  To ensure reliability in a humid environment, consider applying a conformal coating to the PCB and device. Additionally, ensure that the device is stored in a dry environment, and that the PCB is designed with moisture-resistant materials.
