TPX205950MT-7036A1 - TDK

Description: Triplexers, Pass Band/Low Band=1559 to 1606MHz Pass Band/Mid Band=2400 to 2500MHz Pass Band/High Band=4900 to 5950MHz

Download TPX205950MT-7036A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

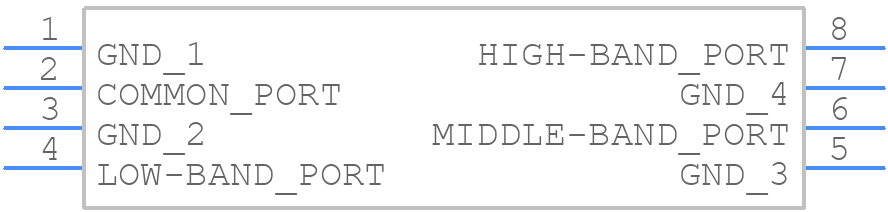

TPX205950MT-7036A1 - TDK - PCB symbol
click to zoom
PCB Footprints
TPX205950MT-7036A1 - TDK PCB footprint - Other - Other - TPX205950MT-7036A1
click to zoom
3D Models
TPX205950MT-7036A1 - TDK - 3D model - Other - TPX205950MT-7036A1
click to zoom

TPX205950MT-7036A1 Details

  • Manufacturer Part Number:

    TPX205950MT-7036A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    EIA STD PACKAGE SIZE 0805, 8 PIN

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Filter Type:

    DUPLEXER

  • Height:

    0.6 mm

  • Insertion Loss (Rx):

    0.9 dB

  • Insertion Loss (Tx):

    1.7 dB

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Receive Center Frequency:

    1583 MHz

  • Transmit Center Frequency:

    5425 MHz

  • Width:

    1.25 mm

TPX205950MT-7036A1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for TPX205950MT-7036A1 can be found in the TDK Corporation's recommended footprint document or by contacting TDK's technical support. The land pattern should be designed to ensure good solderability and thermal dissipation.
  • TPX205950MT-7036A1 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow TDK's recommended thermal design guidelines to prevent overheating and ensure reliable operation.
  • The maximum operating temperature range for TPX205950MT-7036A1 is -40°C to +125°C. However, it's essential to check the derating curves in the datasheet to ensure the component operates within the specified power rating at the desired temperature.
  • TPX205950MT-7036A1 is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, you should consult with TDK's technical support to discuss the component's suitability and potential modifications to ensure reliability.
  • To ensure reliability in humid environments, follow TDK's recommended storage and handling guidelines, and consider using conformal coating or potting to protect the component from moisture. Additionally, ensure the PCB is designed with moisture-resistant materials and follows good manufacturing practices.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPX205950MT-7036A1 Overview

Use the download button to access the TPX205950MT-7036A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPX20, or try a keyword search, such as Duplexers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
