The recommended land pattern for TPX253600MT-7019B2 can be found in the TDK Corporation's recommended land pattern document, which is usually available on their website or through their customer support. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent thermal and electrical issues.
Proper thermal management is crucial for the reliability and performance of TPX253600MT-7019B2. Ensure good thermal conductivity by using a thermal interface material (TIM) between the component and the heat sink or PCB. Also, consider the thermal resistance of the PCB and the heat sink, and design the system to keep the component's temperature within the recommended operating range.
The maximum allowable voltage derating for TPX253600MT-7019B2 is typically specified in the datasheet or can be obtained from TDK Corporation's customer support. As a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and to prevent electrical overstress.
TPX253600MT-7019B2 is designed for high-frequency applications, but its performance may degrade at very high frequencies. Check the datasheet for the recommended frequency range and consider the component's impedance, inductance, and capacitance when designing the circuit. It's also essential to ensure that the PCB layout and component placement are optimized for high-frequency operation.
To ensure the reliability of TPX253600MT-7019B2 in a harsh environment, follow the recommended storage and handling procedures, and ensure that the component is properly soldered and mounted. Also, consider the operating temperature range, humidity, and vibration when designing the system. It's essential to perform thorough testing and validation to ensure the component's reliability in the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPX253600MT-7019B2 Overview

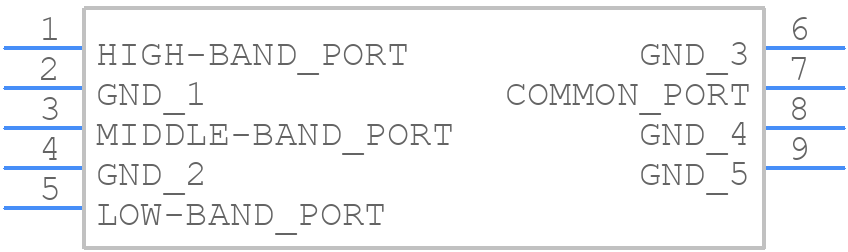

Use the download button to access the TPX253600MT-7019B2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPX25,
or try a keyword search, such as Duplexers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
