The recommended land pattern for TPX255000MT-7066A1 can be found in the TDK Corporation's recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
Thermal management is critical for the reliability and performance of TPX255000MT-7066A1. It is recommended to use a thermal pad or thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K to ensure efficient heat dissipation. Additionally, the PCB design should include thermal vias and a solid ground plane to help dissipate heat.
While the datasheet specifies the operating temperature range, it's essential to note that the maximum operating temperature range for TPX255000MT-7066A1 is -40°C to 125°C. However, it's recommended to derate the component's performance and reliability at temperatures above 85°C to ensure optimal operation.
Yes, TPX255000MT-7066A1 is designed to withstand high-vibration environments. However, it's essential to ensure that the component is properly mounted and secured to the PCB using a suitable adhesive or mechanical fastening method to prevent damage or detachment during vibration.
To troubleshoot issues with TPX255000MT-7066A1, start by reviewing the datasheet and application notes to ensure proper usage and design guidelines. Then, use standard debugging techniques such as signal tracing, voltage measurement, and thermal imaging to identify the root cause of the issue. If the problem persists, contact TDK Corporation's customer support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPX255000MT-7066A1 Overview

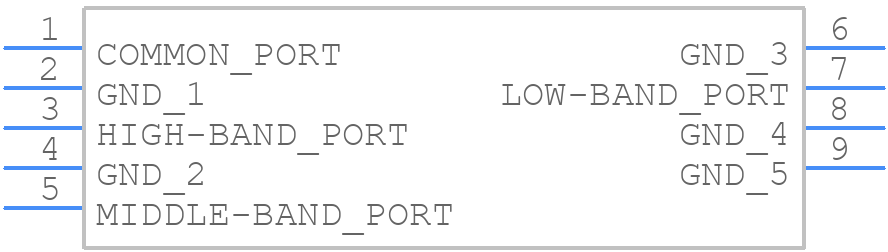

Use the download button to access the TPX255000MT-7066A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPX25,
or try a keyword search, such as Duplexers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
