TPX255850MT-7013A3 - TDK

Description: Triplexers, Pass Band/Low Band=450 to 960MHz Pass Band/Mid Band=1710 to 2690MHz Pass Band/High Band=3400 to 5850MHz

Download TPX255850MT-7013A3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

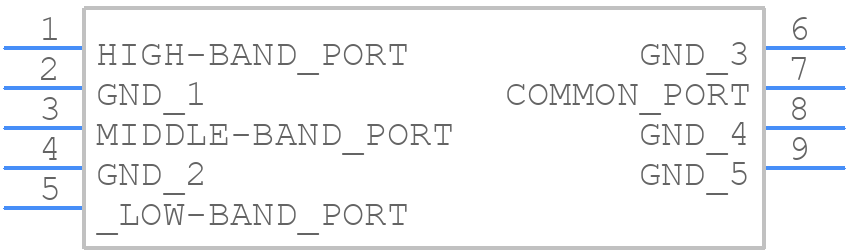

TPX255850MT-7013A3 - TDK - PCB symbol
click to zoom
PCB Footprints
TPX255850MT-7013A3 - TDK PCB footprint - Other - Other - TPX255850MT-7013A3-1
click to zoom
3D Models
TPX255850MT-7013A3 - TDK - 3D model - Other - TPX255850MT-7013A3-1
click to zoom

TPX255850MT-7013A3 Details

  • Manufacturer Part Number:

    TPX255850MT-7013A3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 1008, 2 PIN

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • Filter Type:

    DUPLEXER

  • Height:

    0.9 mm

  • Insertion Loss (Rx):

    1.1 dB

  • Insertion Loss (Tx):

    1.1 dB

  • Length:

    2.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Receive Center Frequency:

    3600 MHz

  • Transmit Center Frequency:

    3600 MHz

  • Width:

    2 mm

TPX255850MT-7013A3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for TPX255850MT-7013A3 can be found in the TDK Corporation's application note or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal issues.
  • To handle thermal management, ensure good thermal conductivity between the device and the PCB. Use thermal vias, thermal pads, or a heat sink to dissipate heat efficiently. Also, consider the thermal resistance of the PCB material and the device's thermal impedance.
  • The maximum operating temperature range for TPX255850MT-7013A3 is -40°C to 125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
  • Yes, TPX255850MT-7013A3 is designed to withstand vibrations. However, it's crucial to ensure proper mounting and soldering to prevent mechanical stress. Consult the TDK Corporation's application note for more information on vibration testing and reliability.
  • To ensure reliability in a humid environment, follow the recommended storage and handling procedures. Apply a conformal coating to protect the device from moisture. Also, consider using a moisture-resistant PCB material and ensure good soldering practices.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPX255850MT-7013A3 Overview

Use the download button to access the TPX255850MT-7013A3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPX25, or try a keyword search, such as Duplexers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
