Part Image

TPX255925MT-7013A6 - TDK

Description: Triplexers, Pass Band/Low Band=450 to 960MHz Pass Band/Mid Band=1710 to 2690MHz Pass Band/High Band=3300 to 5925MHz

Download TPX255925MT-7013A6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

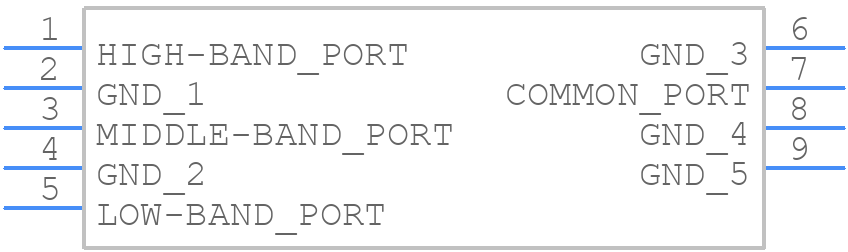

Symbol
TPX255925MT-7013A6 - TDK - PCB symbol
click to zoom
PCB Footprints
TPX255925MT-7013A6 - TDK PCB footprint - Other - Other - TPX255925MT-7013A6-1
click to zoom
3D Models
TPX255925MT-7013A6 - TDK - 3D model - Other - TPX255925MT-7013A6-1
click to zoom

TPX255925MT-7013A6 Details

  • Manufacturer Part Number:

    TPX255925MT-7013A6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • Filter Type:

    DUPLEXER

  • JESD-609 Code:

    e4

  • Terminal Finish:

    Gold (Au)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPX255925MT-7013A6 Overview

Use the download button to access the TPX255925MT-7013A6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPX25, or try a keyword search, such as Duplexers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
