- Part Number TQ2-L-5V
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - TQ2-L-5V-1
- Released Date Aug 17, 2018
- Last Modified Date Jan 21, 2026 4:45 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQ2-L-5V Details
-
Manufacturer Part Number:
TQ2-L-5V
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.49.00.50
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
7
TQ2-L-5V Frequently Asked Questions (FAQs)
-
The maximum switching frequency of the TQ2-L-5V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
-
The TQ2-L-5V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application.
-
Panasonic provides a recommended PCB layout and land pattern for the TQ2-L-5V relay in their datasheet and application notes. It's essential to follow these guidelines to ensure reliable operation and to prevent overheating or electrical noise issues.
-
The TQ2-L-5V relay is designed to withstand moderate vibrations, but it's not suitable for extreme vibration environments. If your application involves high vibrations, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability and potential modifications to ensure reliable operation.
-
Panasonic provides a recommended derating curve for the TQ2-L-5V relay in their datasheet, which indicates the maximum allowable current and voltage ratings at different ambient temperatures. It's essential to follow this derating curve to ensure the relay's reliable operation and to prevent overheating or electrical stress.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TQ2-L-5V Overview

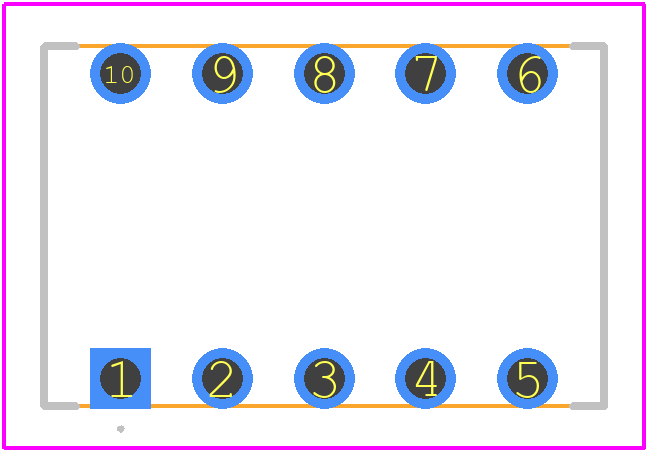

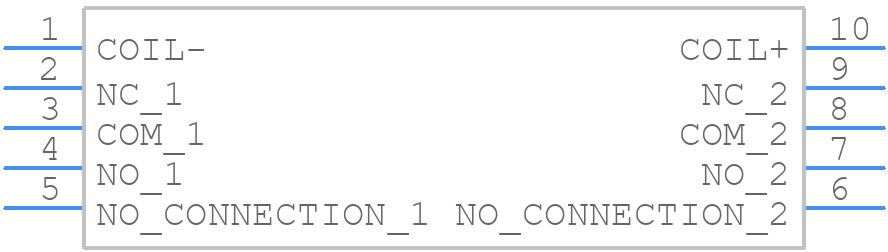

Use the download button to access the TQ2-L-5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2-L,
or try a keyword search, such as Power/Signal Relays
