TQ2-L-9V Frequently Asked Questions (FAQs)

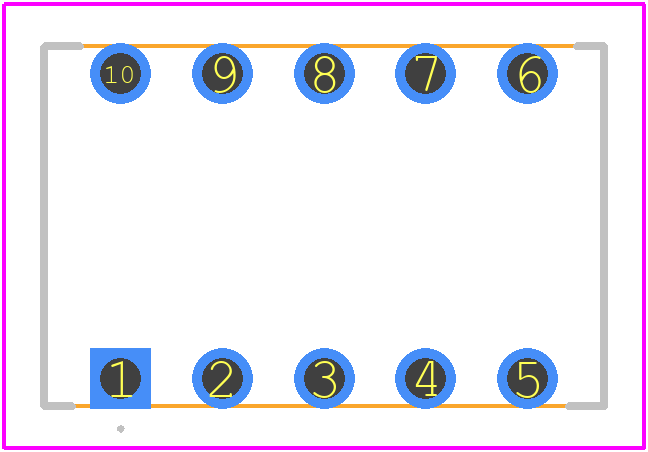

• What is the recommended PCB land pattern for TQ2-L-9V?
  Panasonic provides a recommended PCB land pattern in their application notes, which can be found on their website. The recommended land pattern is a rectangular pad with dimensions of 2.5mm x 1.5mm, with a 0.5mm hole in the center for the pin.
• How do I handle the thermal considerations for TQ2-L-9V?
  The TQ2-L-9V has a high power density, so thermal management is crucial. Ensure good airflow around the component, and consider using a heat sink or thermal pad to dissipate heat. The datasheet provides thermal resistance values to help with thermal design.
• What is the recommended soldering profile for TQ2-L-9V?
  Panasonic recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 3-5°C/s. It's essential to follow this profile to prevent damage to the component.
• Can I use TQ2-L-9V in a high-vibration environment?
  While the TQ2-L-9V is a robust component, it's not designed for extreme vibration environments. If your application involves high vibration, consider using a component with a higher vibration rating or taking additional measures to secure the component to the PCB.
• How do I ensure the reliability of TQ2-L-9V in my design?
  To ensure reliability, follow proper design and manufacturing guidelines, such as using a clean and dry PCB, avoiding overheating, and ensuring good solder joints. Additionally, consider implementing derating, redundancy, and fault-tolerant design principles in your application.
