- Part Number TQ2-L2-12V
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - TQ2-L2-12V-4
- Released Date Aug 10, 2021
- Last Modified Date Jan 21, 2026 4:45 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQ2-L2-12V Details
-
Manufacturer Part Number:
TQ2-L2-12V
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.49.00.50
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
7.87
TQ2-L2-12V Frequently Asked Questions (FAQs)
-
The maximum switching frequency of the TQ2-L2-12V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
-
The TQ2-L2-12V relay is rated for operation up to 85°C. However, the relay's performance and lifespan may be affected at high temperatures. It's recommended to derate the relay's current capacity and consult with Panasonic's application engineers for high-temperature applications.
-
To ensure the relay's contacts are clean and free of contamination, it's recommended to handle the relay in a clean and dry environment, avoid touching the contacts, and use a soft brush or compressed air to remove any debris. Additionally, consider using a relay with a contact protection coating or a relay socket with a built-in contact cleaning mechanism.
-
The recommended PCB layout and trace width for the TQ2-L2-12V relay depend on the specific application and current requirements. As a general guideline, use a minimum trace width of 1.5 mm and a minimum spacing of 1.5 mm between the relay's pins and other components. Consult with Panasonic's application engineers or a PCB design expert for specific guidance.
-
The TQ2-L2-12V relay is not designed for safety-critical applications. If you need a relay for a safety-critical application, consider using a relay that meets the relevant safety standards, such as IEC 61508 or UL 508. Consult with Panasonic's application engineers or a safety expert to determine the suitable relay for your application.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TQ2-L2-12V Overview

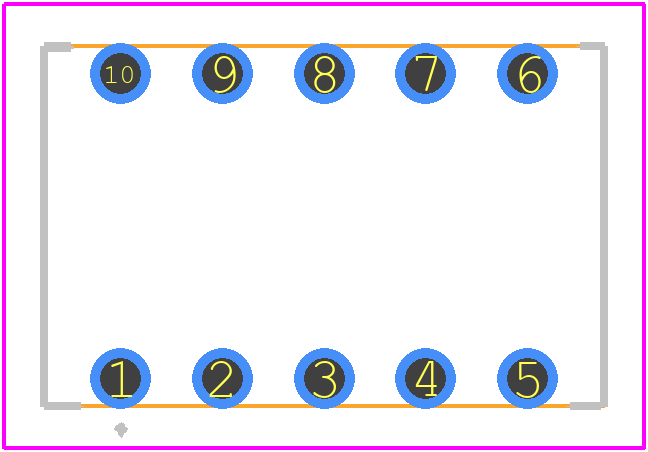

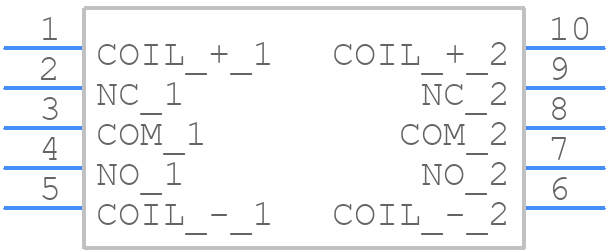

Use the download button to access the TQ2-L2-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2-L,
or try a keyword search, such as Power/Signal Relays
