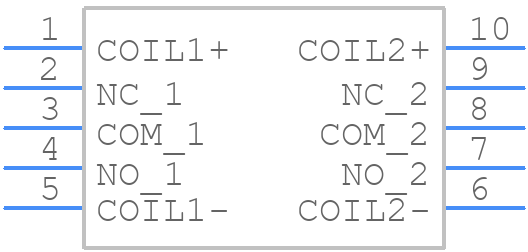

Symbol

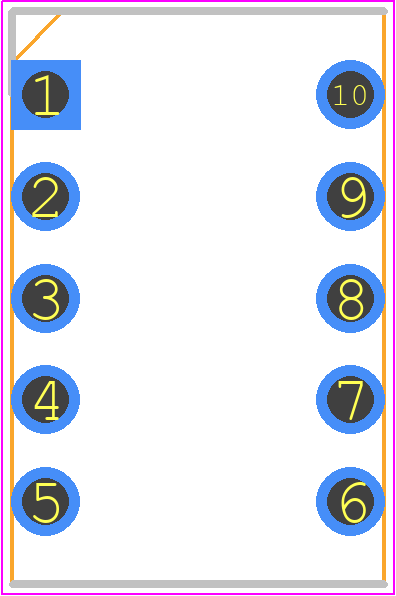

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TQ2-L224ULCSA
- Part Number TQ2-L224ULCSA
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - 2 Form C
- Released Date Jun 22, 2020
- Last Modified Date Jun 22, 2023 10:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
TQ2-L224ULCSA Details
-
Manufacturer Part Number:
TQ2-L224ULCSA
-
Manufacturer:
Panasonic Electronic Components
Trust Checks
Expert Contribution
System Verified
Community Approved
TQ2-L224ULCSA Overview
Use the download button to access the TQ2-L224ULCSA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2-L,
or try a keyword search, such as Power/Signal Relays
