TQ2H-L2-24V - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2H-L2-24V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

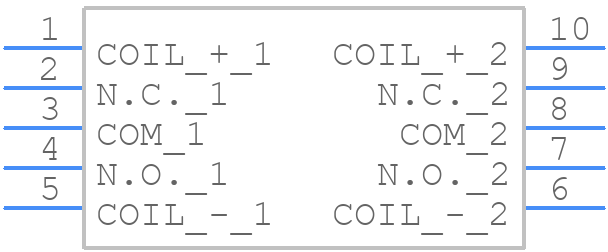

TQ2H-L2-24V - Panasonic - PCB symbol
click to zoom
PCB Footprints

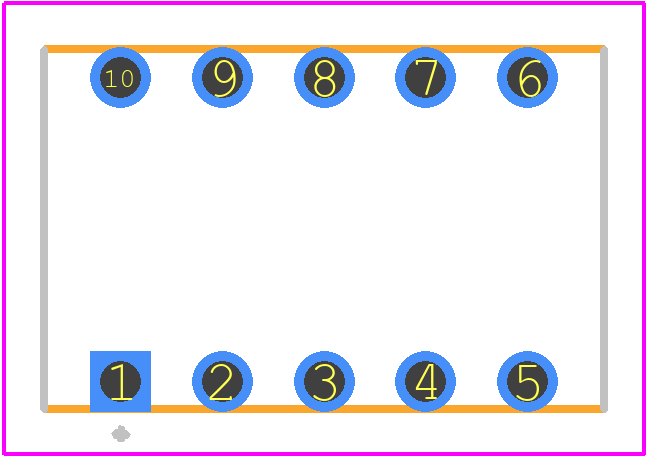

TQ2H-L2-24V - Panasonic PCB footprint - Other - Other - TQ2H-L2x
click to zoom
3D Models
TQ2H-L2-24V - Panasonic - 3D model - Other - TQ2H-L2x
click to zoom

TQ2H-L2-24V Details

  • Manufacturer Part Number:

    TQ2H-L2-24V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.48

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9 mm

  • Body Height:

    5 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.013 A

  • Coil Operate Voltage(DC):

    18 V

  • Coil Power:

    300 mW

  • Coil Release Voltage(DC):

    18 V

  • Coil Resistance:

    1920 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    1A@125VAC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@110VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    110 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    3 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    14mm x 9mm x 5mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    LATCHED

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    3 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TQ2H-L2-24V Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the TQ2H-L2-24V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
  • The TQ2H-L2-24V relay is rated for operation up to 85°C. However, the relay's performance and lifespan may be affected at high temperatures. It's recommended to derate the relay's current capacity and consult with Panasonic's application engineers for high-temperature applications.
  • Panasonic recommends a minimum spacing of 5 mm between the relay and other components on the PCB to ensure proper heat dissipation and to prevent electrical noise interference. A recommended PCB layout is available in the relay's application notes.
  • The TQ2H-L2-24V relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the suitable vibration resistance for your specific application.
  • Panasonic recommends a soldering temperature of 260°C (500°F) and a soldering time of 3-5 seconds. It's essential to follow the recommended soldering profile to prevent damage to the relay.
