TQ2SA-12V-X - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2SA-12V-X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

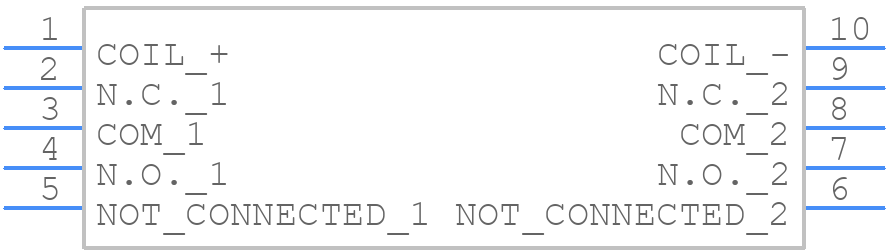

TQ2SA-12V-X - Panasonic - PCB symbol
click to zoom
PCB Footprints
TQ2SA-12V-X - Panasonic PCB footprint - Other - Other - ATQ2_SL_SA
click to zoom
3D Models
TQ2SA-12V-X - Panasonic - 3D model - Other - ATQ2_SL_SA
click to zoom

TQ2SA-12V-X Details

  • Manufacturer Part Number:

    TQ2SA-12V-X

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.87

  • Body Breadth:

    9 mm

  • Body Height:

    5.6 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.012 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    140 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    1028 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@125VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Physical Dimension:

    14mm x 9mm x 5.6mm

  • Reference Standard:

    BSI; CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TQ2SA-12V-X Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • To ensure reliable operation in high-temperature environments, make sure to derate the relay's current capacity according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow and thermal management around the relay.
  • Panasonic recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 3-5 seconds. It's essential to follow a controlled soldering process to prevent damage to the relay.
  • While the TQ2SA-12V-X relay is a high-quality component, it's essential to evaluate its suitability for safety-critical applications. Panasonic provides additional documentation and support for safety-critical applications; contact their technical support for more information.
  • To minimize EMI, ensure proper shielding and grounding of the relay and its associated circuitry. Additionally, use a layout that minimizes loop areas and keeps the relay and its connections away from sensitive circuits.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQ2SA-12V-X Overview

Use the download button to access the TQ2SA-12V-X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2SA, or try a keyword search, such as Power/Signal Relays
