TQ2SA-48V - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2SA-48V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

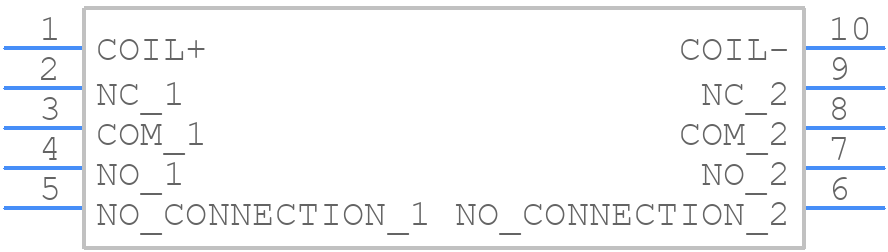

Symbol
TQ2SA-48V - Panasonic - PCB symbol
click to zoom
PCB Footprints
TQ2SA-48V - Panasonic PCB footprint - Other - Other - TQ2SA-48V-1
click to zoom
3D Models
TQ2SA-48V - Panasonic - 3D model - Other - TQ2SA-48V-1
click to zoom

TQ2SA-48V Details

  • Manufacturer Part Number:

    TQ2SA-48V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9 mm

  • Body Height:

    5.4 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.006 A

  • Coil Operate Voltage(DC):

    36 V

  • Coil Power:

    300 mW

  • Coil Release Voltage(DC):

    4.8 V

  • Coil Resistance:

    7680 Ω

  • Coil Voltage(DC)-Max:

    48 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@125VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    14mm x 9mm x 5.4mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TQ2SA-48V Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • To ensure reliable operation in high-temperature environments, it's crucial to consider the relay's power consumption, ambient temperature, and thermal resistance. Panasonic provides thermal derating curves in the datasheet, which can help engineers design a reliable system.
  • Panasonic recommends using a diode or a snubber circuit to suppress the coil voltage spike when the relay is turned off. This helps to prevent electromagnetic interference (EMI) and ensures reliable operation.
  • While the TQ2SA-48V is a high-reliability relay, it's essential to evaluate its suitability for safety-critical applications. Engineers should consider factors like fault tolerance, redundancy, and failure modes to ensure the relay meets the required safety standards.
  • The relay's lifetime depends on various factors, including the number of operations, operating conditions, and environmental factors. Panasonic provides guidelines for estimating the relay's lifetime, and engineers should consider these factors when determining a replacement schedule.
