TQ2SL-12V-Z - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2SL-12V-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

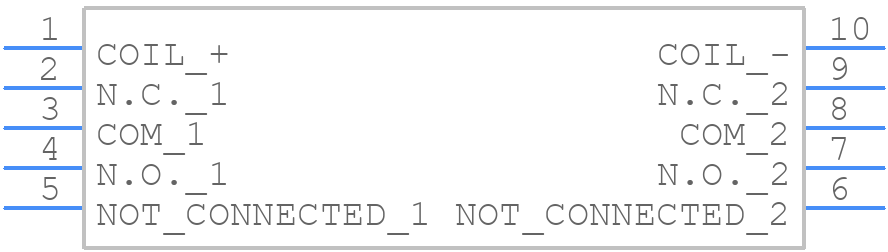

Symbol
TQ2SL-12V-Z - Panasonic - PCB symbol
click to zoom
PCB Footprints
TQ2SL-12V-Z - Panasonic PCB footprint - Other - Other - ATQ2_SL_SA
click to zoom
3D Models
TQ2SL-12V-Z - Panasonic - 3D model - Other - ATQ2_SL_SA
click to zoom

TQ2SL-12V-Z Details

  • Manufacturer Part Number:

    TQ2SL-12V-Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.87

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9 mm

  • Body Height:

    7.5 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.012 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    140 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    1028 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@125VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Physical Dimension:

    14mm x 9mm x 7.5mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Termination Type:

    SOLDER

TQ2SL-12V-Z Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • To ensure proper driving and control of the relay, it's crucial to follow the recommended drive circuit and voltage levels specified in the datasheet. Additionally, consider using a relay driver IC or a dedicated relay control circuit to simplify the design and ensure reliable operation.
  • When using the TQ2SL-12V-Z in a high-vibration or high-shock environment, it's essential to ensure the relay is properly secured to the PCB and that the PCB is designed to withstand the mechanical stresses. Additionally, consider using a relay with a higher vibration and shock rating, such as the TQ2SL-12V-ZH, which is specifically designed for harsh environments.
  • To handle the relay's inrush current and voltage surge during switching, consider using a soft-start circuit or an inrush current limiter to reduce the stress on the relay and the power supply. Additionally, ensure the power supply is capable of handling the inrush current and voltage surge.
  • The TQ2SL-12V-Z has a maximum operating temperature of 85°C. To ensure proper heat dissipation, ensure good airflow around the relay, use a heat sink if necessary, and follow the recommended PCB layout and thermal management guidelines provided by Panasonic.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQ2SL-12V-Z Overview

Use the download button to access the TQ2SL-12V-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2SL, or try a keyword search, such as Power/Signal Relays
