TQ2SL-24V-Z - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2SL-24V-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

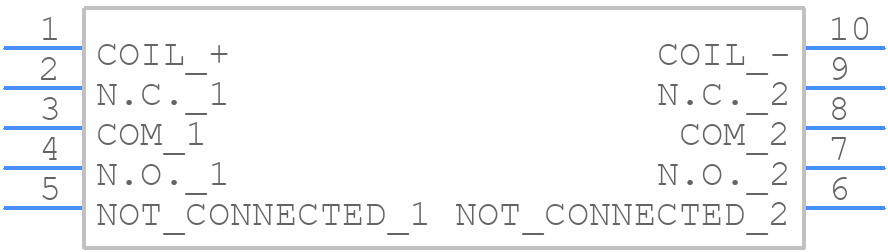

TQ2SL-24V-Z - Panasonic - PCB symbol
click to zoom
PCB Footprints
TQ2SL-24V-Z - Panasonic PCB footprint - Other - Other - ATQ2_SL_SA
click to zoom
3D Models
TQ2SL-24V-Z - Panasonic - 3D model - Other - ATQ2_SL_SA
click to zoom

TQ2SL-24V-Z Details

  • Manufacturer Part Number:

    TQ2SL-24V-Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.87

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9 mm

  • Body Height:

    7.5 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.008 A

  • Coil Operate Voltage(DC):

    18 V

  • Coil Power:

    200 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    2880 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@125VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Physical Dimension:

    14mm x 9mm x 7.5mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TQ2SL-24V-Z Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • To ensure reliable operation in high-temperature environments, it's crucial to consider the relay's power consumption, PCB thermal design, and heat dissipation. Panasonic recommends following their thermal design guidelines and using a heat sink if necessary.
  • Panasonic provides a recommended drive circuit in their application notes, which includes a transistor, resistor, and diode. This circuit ensures proper relay operation and prevents back-EMF damage.
  • To handle the inrush current, it's recommended to use a soft-start circuit or an NTC thermistor in series with the relay coil to limit the inrush current. This prevents voltage drops and ensures reliable relay operation.
  • According to Panasonic's datasheet, the maximum allowable voltage drop across the relay coil is 20% of the nominal coil voltage. Exceeding this limit may affect relay performance and lifespan.
