- Part Number TQ2SL-4.5V-Z
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - ATQ2_SL_SA
- Released Date Jan 21, 2026
- Last Modified Date Mar 23, 2026 2:54 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQ2SL-4.5V-Z Details
-
Manufacturer Part Number:
TQ2SL-4.5V-Z
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.49.00.50
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
7.5
-
Additional Feature:
LOW PROFILE
TQ2SL-4.5V-Z Frequently Asked Questions (FAQs)
-
The recommended land pattern for TQ2SL-4.5V-Z can be found in the Panasonic Electronic Components' recommended land pattern document or by consulting with a PCB design expert. A general guideline is to use a land pattern with a minimum pad size of 0.5mm x 0.5mm and a spacing of 0.3mm between pads.
-
To handle thermal considerations for TQ2SL-4.5V-Z, ensure that the device is mounted on a PCB with a sufficient thermal mass, and consider using thermal vias to dissipate heat. The device's thermal resistance (Rth) is specified in the datasheet, and it's essential to keep the operating temperature within the recommended range to ensure reliability and performance.
-
The recommended soldering profile for TQ2SL-4.5V-Z is a peak temperature of 260°C (500°F) with a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device and ensure reliable connections.
-
While TQ2SL-4.5V-Z is a robust device, it's essential to consider the vibration specifications in the datasheet and ensure that the device is properly mounted and secured to withstand the expected vibration levels. Additional mechanical support or vibration dampening measures may be necessary in high-vibration environments.
-
To troubleshoot issues with TQ2SL-4.5V-Z, start by consulting the datasheet and application notes. Check for proper power supply, signal integrity, and thermal management. Use oscilloscopes and logic analyzers to debug signal issues, and consider consulting with a Panasonic Electronic Components' support engineer or a qualified electronics expert.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TQ2SL-4.5V-Z Overview

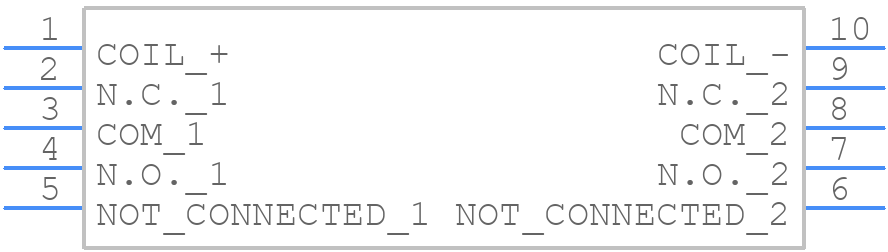

Use the download button to access the TQ2SL-4.5V-Z schematic symbol, PCB footprint, and 3D model.
