TQ2SL-5V-Z - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2SL-5V-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

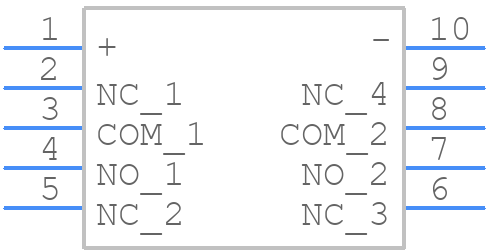

TQ2SL-5V-Z - Panasonic - PCB symbol
click to zoom
PCB Footprints
TQ2SL-5V-Z - Panasonic PCB footprint - Other - Other - TQ2SL-5V-Z-1
click to zoom
3D Models
TQ2SL-5V-Z - Panasonic - 3D model - Other - TQ2SL-5V-Z-1
click to zoom

TQ2SL-5V-Z Details

  • Manufacturer Part Number:

    TQ2SL-5V-Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.87

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9 mm

  • Body Height:

    7.5 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.028 A

  • Coil Operate Voltage(DC):

    3.75 V

  • Coil Power:

    140 mW

  • Coil Release Voltage(DC):

    0.5 V

  • Coil Resistance:

    178 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@125VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Physical Dimension:

    14mm x 9mm x 7.5mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TQ2SL-5V-Z Frequently Asked Questions (FAQs)

  • The recommended land pattern for TQ2SL-5V-Z can be found in the Panasonic's recommended land pattern document or by consulting with a PCB design expert. A general guideline is to follow the IPC-7351 standard for QFN packages.
  • The thermal pad on TQ2SL-5V-Z should be connected to a solid ground plane on the PCB to ensure efficient heat dissipation. A thermal via array can be used to connect the thermal pad to the ground plane. During assembly, a thermal interface material (TIM) can be applied to the thermal pad to improve heat transfer.
  • Although the datasheet specifies an operating temperature range of -40°C to 105°C, it's essential to consider the specific application and environment. For extreme temperature conditions, consult with Panasonic's application engineers or consider using a different component with a wider operating temperature range.
  • To ensure reliable soldering, follow the recommended soldering profile and temperature guidelines. Use a solder paste with a suitable melting point, and ensure the PCB is clean and free of contaminants. Avoid excessive soldering temperatures, and use a soldering iron with a suitable tip size and shape.
  • TQ2SL-5V-Z is a sensitive component and requires proper ESD protection during handling and assembly. Use ESD-safe materials, such as wrist straps, mats, and bags, and follow proper handling procedures to prevent damage from electrostatic discharge.
