TQ2SL-L-24V - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2SL-L-24V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

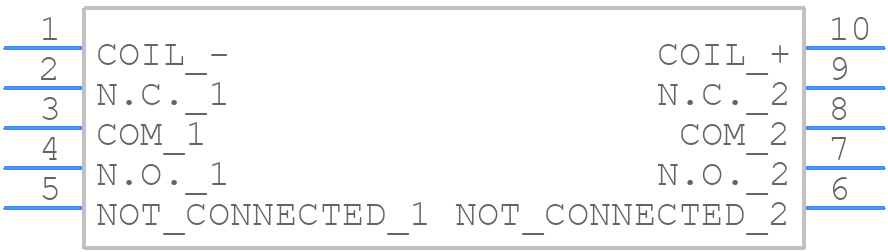

TQ2SL-L-24V - Panasonic - PCB symbol
click to zoom
PCB Footprints
TQ2SL-L-24V - Panasonic PCB footprint - Other - Other - ATQ2_SL_SA
click to zoom
3D Models
TQ2SL-L-24V - Panasonic - 3D model - Other - ATQ2_SL_SA
click to zoom

TQ2SL-L-24V Details

  • Manufacturer Part Number:

    TQ2SL-L-24V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9 mm

  • Body Height:

    5.4 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.004 A

  • Coil Operate Voltage(DC):

    18 V

  • Coil Power:

    100 mW

  • Coil Release Voltage(DC):

    18 V

  • Coil Resistance:

    5760 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@125VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    14mm x 9mm x 5.4mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    LATCHED

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TQ2SL-L-24V Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for power lines, and a decoupling capacitor (e.g., 10uF) close to the module to minimize noise and ensure stable operation.
  • To ensure reliability, follow Panasonic's recommended operating temperature range (up to 85°C), use a suitable thermal interface material, and ensure good airflow around the module. Additionally, consider derating the output power and current to prevent overheating.
  • While the datasheet specifies a nominal input voltage of 24V, Panasonic recommends keeping the input voltage within ±10% of the nominal value (i.e., 21.6V to 26.4V) to ensure stable operation and prevent damage to the module.
  • Yes, the TQ2SL-L-24V can be used in redundant or parallel configurations, but it's essential to follow Panasonic's guidelines for synchronization and current sharing to prevent damage to the modules and ensure reliable operation.
  • According to Panasonic, the MTBF of the TQ2SL-L-24V is approximately 5.5 million hours at 40°C, calculated based on MIL-HDBK-217F (Notice 2) standards. However, this value may vary depending on the specific application and operating conditions.
