The recommended storage condition for TQ2SL-L2-3V-X is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid storing in direct sunlight or near heat sources.
Yes, TQ2SL-L2-3V-X is designed to withstand vibrations up to 10G (10m/s²) in the frequency range of 10Hz to 2000Hz. However, it's recommended to consult with Panasonic's application engineers for specific vibration requirements.
During soldering, the TQ2SL-L2-3V-X should be handled with care to avoid excessive heat, mechanical stress, or electrostatic discharge. Follow the recommended soldering profile and handling procedures outlined in the datasheet or Panasonic's application notes.
Yes, the TQ2SL-L2-3V-X is compatible with lead-free soldering. However, it's recommended to follow the recommended soldering profile and temperature range to ensure reliable operation.
The typical operating life of the TQ2SL-L2-3V-X is 10 years or more, depending on the operating conditions, such as temperature, humidity, and usage patterns. Consult with Panasonic's application engineers for specific life expectancy estimates.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TQ2SL-L2-3V-X Overview

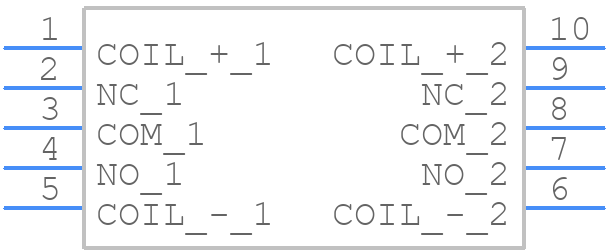

Use the download button to access the TQ2SL-L2-3V-X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2SL,
or try a keyword search, such as Power/Signal Relays
