According to Panasonic's guidelines, it's recommended to store the TQ2SL-L2-4.5V in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. This helps prevent moisture absorption and ensures optimal performance.
While the TQ2SL-L2-4.5V is designed to be robust, it's essential to consider the vibration specifications. Panasonic recommends a maximum vibration amplitude of 1.5 mm (double amplitude) and a frequency range of 10 Hz to 55 Hz. Exceeding these limits may affect the device's performance and lifespan.
To ensure reliable soldering and reflow, follow Panasonic's recommended temperature profile: peak temperature should not exceed 260°C, and the total heating time should be less than 60 seconds. Additionally, use a soldering iron with a temperature range of 350°C to 380°C, and avoid applying excessive force or pressure during the process.
Panasonic provides a recommended PCB layout and land pattern in their application notes or datasheet. It's essential to follow these guidelines to ensure proper heat dissipation, reduce thermal stress, and prevent electrical noise. A well-designed PCB layout can significantly impact the device's performance and reliability.
The TQ2SL-L2-4.5V is rated for operation up to 125°C. However, it's crucial to consider the derating curve and thermal management when operating the device at high temperatures. Ensure proper heat dissipation and follow Panasonic's guidelines for high-temperature applications to prevent overheating and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TQ2SL-L2-4.5V Overview

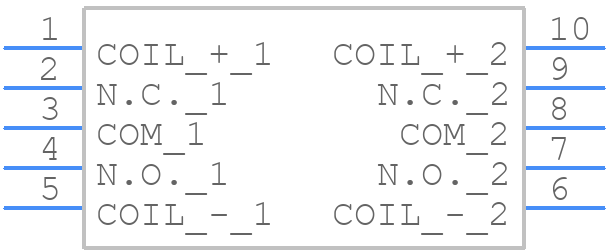

Use the download button to access the TQ2SL-L2-4.5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2SL,
or try a keyword search, such as Power/Signal Relays
