TQ2SS-5V-X - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2SS-5V-X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

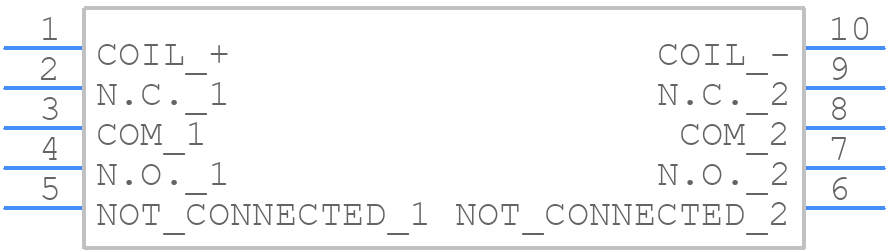

TQ2SS-5V-X - Panasonic - PCB symbol
click to zoom
PCB Footprints
TQ2SS-5V-X - Panasonic PCB footprint - Other - Other - TQ2SS-L2-5V-2
click to zoom
3D Models
TQ2SS-5V-X - Panasonic - 3D model - Other - TQ2SS-L2-5V-2
click to zoom

TQ2SS-5V-X Details

  • Manufacturer Part Number:

    TQ2SS-5V-X

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.87

  • Body Breadth:

    9 mm

  • Body Height:

    5.6 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.028 A

  • Coil Operate Voltage(DC):

    3.75 V

  • Coil Power:

    140 mW

  • Coil Release Voltage(DC):

    0.5 V

  • Coil Resistance:

    178 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@125VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Physical Dimension:

    14mm x 9mm x 5.6mm

  • Reference Standard:

    BSI; CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
