TQ2SS-L-12V - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2SS-L-12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

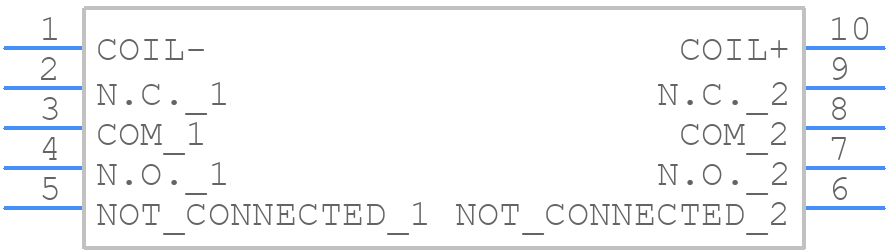

Symbol
TQ2SS-L-12V - Panasonic - PCB symbol
click to zoom
PCB Footprints
TQ2SS-L-12V - Panasonic PCB footprint - Other - Other - TQ_SS_1CL
click to zoom
3D Models
TQ2SS-L-12V - Panasonic - 3D model - Other - TQ_SS_1CL
click to zoom

TQ2SS-L-12V Details

  • Manufacturer Part Number:

    TQ2SS-L-12V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9 mm

  • Body Height:

    5.4 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.006 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    70 mW

  • Coil Release Voltage(DC):

    9 V

  • Coil Resistance:

    2057 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@125VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    14mm x 9mm x 5.4mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    LATCHED

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TQ2SS-L-12V Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for power lines, and a decoupling capacitor (e.g., 10uF) close to the module's power pins to minimize noise and ensure stable operation.
  • To ensure reliability in high-temperature applications, follow Panasonic's recommended operating temperature range (up to 85°C), use a suitable thermal interface material, and consider derating the output current according to the temperature derating curve provided in the datasheet.
  • Although not explicitly stated in the datasheet, a general rule of thumb is to keep the input ripple voltage below 10% of the nominal input voltage (i.e., 1.2V for a 12V input) to ensure stable operation and minimize noise.
  • Yes, the TQ2SS-L-12V can be used in redundant or parallel configurations, but it's essential to follow Panasonic's guidelines for paralleling or redundancy, and to ensure proper synchronization and current sharing between modules to avoid instability or damage.
  • The typical efficiency of the TQ2SS-L-12V is around 92-95% at full load, and it decreases as the load current decreases. For a more accurate estimate, refer to the efficiency vs. load current curve provided in the datasheet or contact Panasonic's support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQ2SS-L-12V Overview

Use the download button to access the TQ2SS-L-12V schematic symbol, PCB footprint, and 3D model.
