TQL9044 - Qorvo

Description: RF Amplifier 1.5-4.0GHz LNA NF .6dB Gain 19.4dB

Download TQL9044 Model

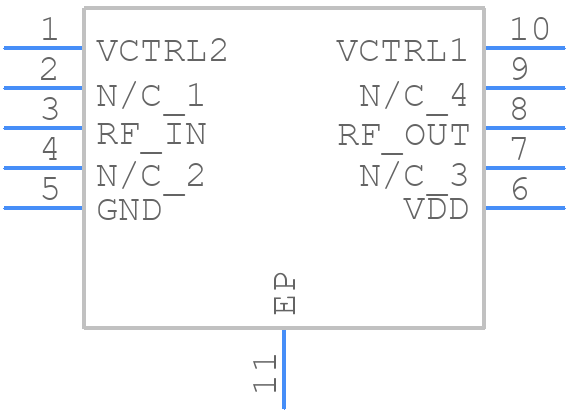

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TQL9044 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10
click to zoom
3D Models
TQL9044 - Qorvo  - 3D model - Small Outline No-lead - DFN10
click to zoom

TQL9044 Details

  • Manufacturer Part Number:

    TQL9044

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MO-229, DFN-10

  • ECCN Code:

    5A991.B

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • Construction:

    COMPONENT

  • Gain:

    15.5 dB

  • Input Power-Max (CW):

    22 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    1500 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    110 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

TQL9044 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The TQL9044 requires a bias voltage of 3.3V to 5V, and a bias current of 10mA to 20mA. A voltage regulator or a voltage reference should be used to ensure a stable bias voltage.
  • The TQL9044 can handle up to 2W of input power, but it's recommended to derate the power handling to 1.5W or less to ensure reliable operation and to prevent overheating.
  • Check the PCB layout for any signs of resonance or oscillation. Verify that the bias voltage and current are within the recommended range. Use a spectrum analyzer to check for any unwanted frequency components. If issues persist, consult the Qorvo application note AN-1234 for troubleshooting guidelines.
  • Yes, the TQL9044 can be used in a push-pull configuration, but it's essential to ensure that the two devices are properly matched and biased to prevent uneven current sharing and oscillations.
