- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TQL9047
- Part Number TQL9047
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - QFN DFN 8
- Released Date May 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQL9047 Details
-
Manufacturer Part Number:
TQL9047
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A991.B
-
Manufacturer:
Qorvo
-
YTEOL:
7
-
Mounting Feature:
SURFACE MOUNT
-
Number of Functions:
1
-
Number of Terminals:
8
-
Package Body Material:
PLASTIC/EPOXY
-
Package Equivalence Code:
SOLCC8,.08,20
TQL9047 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
-
The TQL9047 requires a bias voltage of 3.3V to 5V. Ensure the bias voltage is stable and noise-free, and that the device is properly decoupled with 100nF and 10uF capacitors.
-
The TQL9047 can handle up to 30dBm of input power. Exceeding this limit may cause damage to the device or affect its performance.
-
Check the PCB layout for any defects or noise coupling. Verify the bias voltage and decoupling capacitors are correct. Use a spectrum analyzer to measure the input and output signals, and check for any signs of oscillation or instability.
-
Yes, the TQL9047 can be used in a push-pull configuration to improve linearity and reduce distortion. However, this requires careful design and layout to ensure proper balancing and matching of the two devices.
Trust Checks
Expert Contribution
System Verified
Community Approved
TQL9047 Overview

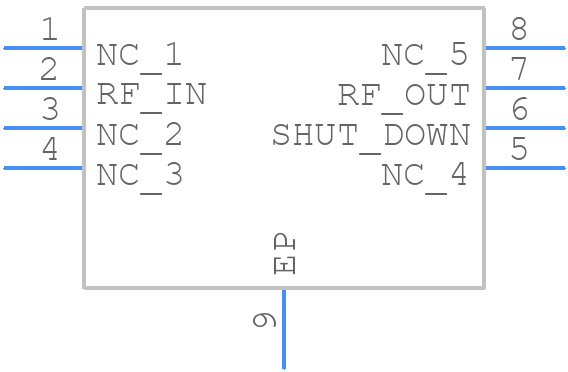

Use the download button to access the TQL9047 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQL90,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
