- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TQL9062
- Part Number TQL9062
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - QFN-9
- Released Date Nov 20, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQL9062 Details
-
Manufacturer Part Number:
TQL9062
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
DFN-8
-
ECCN Code:
5A991.B
-
Manufacturer:
Qorvo
-
YTEOL:
7.01
-
Additional Feature:
LOW NOISE, TTL COMPATIBLE
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
15 dB
TQL9062 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize radiation. A via-stitched ground plane under the device is also recommended to reduce radiation.
-
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Start with a simple L-match or pi-match network and then use simulation tools to optimize the component values. Consider using a 3D electromagnetic simulator to model the PCB and optimize the matching networks.
-
A single-supply biasing scheme with a voltage regulator is recommended. The recommended bias voltage is 3.3V, but the device can operate from 2.7V to 5.5V. A decoupling capacitor should be placed close to the device to filter out noise and ripple.
-
Use a low-noise amplifier or a noise-cancelling amplifier in the signal chain. Ensure that the input signal is properly filtered and amplified before feeding it to the TQL9062. Use a high-quality, low-noise power supply to power the device.
-
The maximum operating temperature of the TQL9062 is 125°C. However, the device can operate up to 150°C for short periods of time. Ensure that the device is properly heat-sinked and that the PCB is designed to dissipate heat efficiently.
Trust Checks
Community Provided
System Verified
Community Approved
TQL9062 Overview

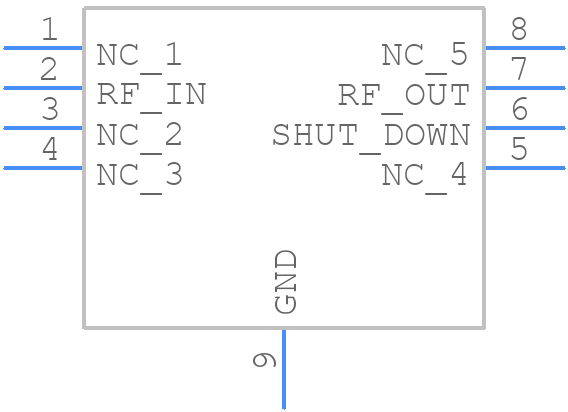

Use the download button to access the TQL9062 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQL90,
or try a keyword search, such as RF/Microwave Amplifiers
