TQL9093 - Qorvo

Description: RF Amplifier .6-4.2GHz Gain 19dB NF .7dB OIP3 45dBm

Download TQL9093 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

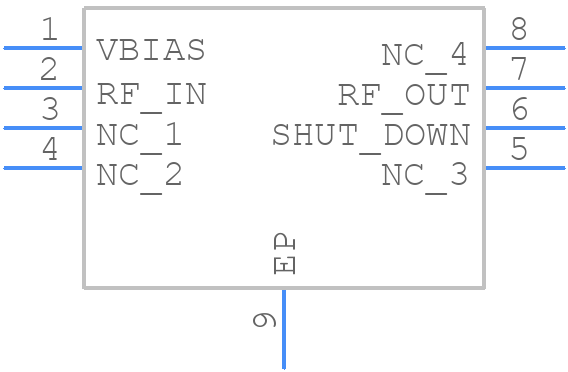

TQL9093 - Qorvo - PCB symbol
click to zoom
PCB Footprints
TQL9093 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN package
click to zoom
3D Models
TQL9093 - Qorvo - 3D model - Small Outline No-lead - DFN package
click to zoom

TQL9093 Details

  • Manufacturer Part Number:

    TQL9093

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    5A991.B

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.01

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    19.9 dB

  • Input Power-Max (CW):

    33 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    4200 MHz

  • Operating Frequency-Min:

    600 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

TQL9093 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad or heat sink to maintain a junction temperature below 125°C.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a pi-network or a T-network topology, and adjust the component values to achieve the desired impedance match.
  • Operate the device within the recommended temperature range of -40°C to 85°C. Ensure a stable power supply with minimal ripple and noise. Avoid exceeding the maximum ratings for voltage, current, and power dissipation.
  • Use a systematic approach to troubleshoot issues. Check the power supply, input and output signals, and temperature. Use oscilloscopes and spectrum analyzers to analyze the signals. Consult the datasheet and application notes for guidance on debugging common issues.
  • Handle the device with ESD-protective equipment and follow proper handling procedures. Ensure the device is stored in an ESD-protective package. Use a wrist strap or mat to discharge static electricity before handling the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQL9093 Overview

Use the download button to access the TQL9093 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQL90, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
