- Part Number TQP3M9005
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN-16_2022-1
- Released Date Sep 10, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQP3M9005 Details
-
Manufacturer Part Number:
TQP3M9005
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-16
-
ECCN Code:
5A991.B
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
13.9 dB
-
Input Power-Max (CW):
20 dBm
TQP3M9005 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize radiation. A via-stitched ground plane under the device is also recommended to reduce electromagnetic interference (EMI).
-
The TQP3M9005 requires a bias voltage of 3.3V to 5V. A voltage regulator or a voltage divider network can be used to generate the bias voltage. The bias voltage should be decoupled with a 10uF capacitor to reduce noise and ensure stable operation.
-
The TQP3M9005 can handle up to 30 dBm of input power. However, the device is typically operated at a maximum input power of 20 dBm to ensure reliable operation and minimize the risk of damage.
-
Common issues with the TQP3M9005 include overheating, oscillation, and poor gain performance. Troubleshooting steps include checking the bias voltage, input power, and PCB layout. A spectrum analyzer can be used to measure the output spectrum and identify any issues.
-
Yes, the TQP3M9005 can be used in a push-pull configuration to improve linearity and reduce distortion. However, this requires careful design and layout to ensure proper balancing and impedance matching.
Trust Checks
Community Provided
System Verified
Community Approved
TQP3M9005 Overview

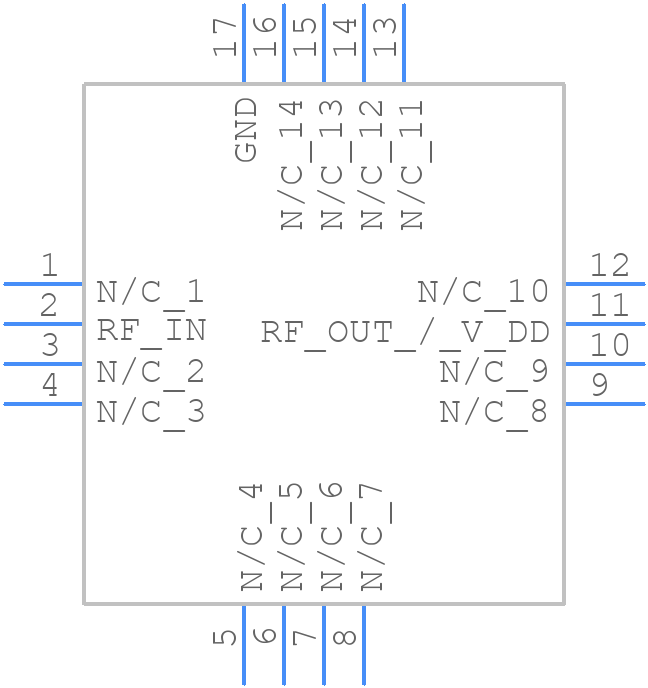

Use the download button to access the TQP3M9005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQP3M,
or try a keyword search, such as RF/Microwave Amplifiers
