TQP3M9008 - Qorvo

Description: RF Amplifier .05GHz to 4GHz 35.5dBm OIP3

Download TQP3M9008 Model

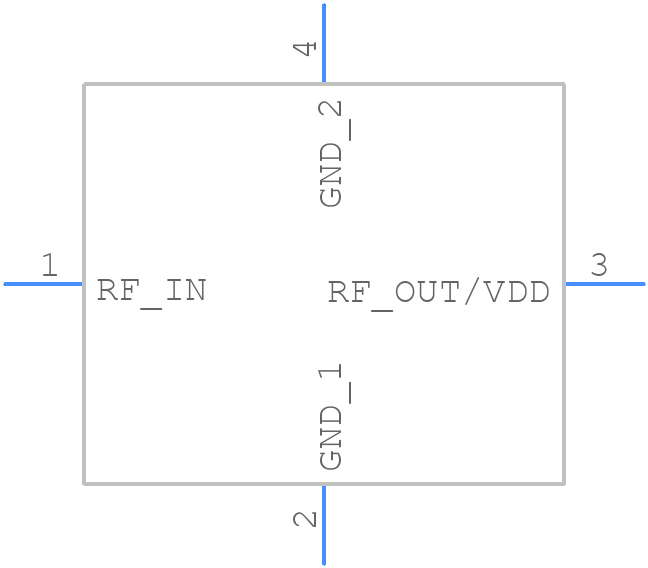

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TQP3M9008 - Qorvo PCB footprint - Other - Other - 3-pin SOT-89_1
click to zoom
3D Models
TQP3M9008 - Qorvo  - 3D model - Other - 3-pin SOT-89_1
click to zoom

TQP3M9008 Details

  • Manufacturer Part Number:

    TQP3M9008

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    5A991.B

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    19 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TO-243

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    100 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • VSWR-Max:

    1.33

TQP3M9008 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output ports should be separated by at least 10 mm to minimize coupling.
  • The device requires a single 5V supply voltage (VCC) and a bias voltage (VBIAS) of 2.5V to 3.5V. The bias voltage should be decoupled with a 10nF capacitor to ensure stability.
  • The maximum input power rating is 23 dBm. Exceeding this rating may cause damage to the device or affect its performance.
  • Check the power supply voltage, bias voltage, and input signal levels. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use a spectrum analyzer to check for spurious signals or harmonics.
  • Yes, the TQP3M9008 can be used in a push-pull configuration to improve output power and efficiency. However, this requires careful design and layout to ensure proper impedance matching and minimal coupling between the two devices.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQP3M9008 Overview

Use the download button to access the TQP3M9008 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQP3M, or try a keyword search, such as RF/Microwave Amplifiers
