TQP3M9035 - Qorvo

Description: RF Amplifier 50-4000MHz NF .66dB Gain 16.5dB @1.9GHz High Linearity LNA Gain Block

Download TQP3M9035 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

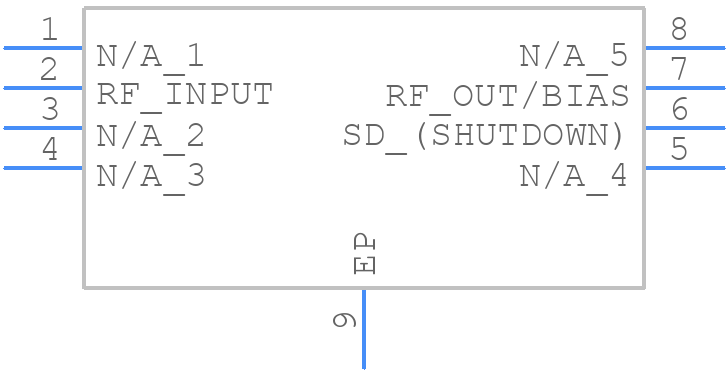

Symbol
TQP3M9035 - Qorvo - PCB symbol
click to zoom
PCB Footprints
TQP3M9035 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - TQP3M9035
click to zoom
3D Models
TQP3M9035 - Qorvo - 3D model - Small Outline No-lead - TQP3M9035
click to zoom

TQP3M9035 Details

  • Manufacturer Part Number:

    TQP3M9035

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • ECCN Code:

    5A991.B

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.01

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

TQP3M9035 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output ports should be separated by at least 10 mm to minimize coupling.
  • The device requires a single 5V supply voltage, and the VCC pin should be decoupled with a 10 nF capacitor to ground. The bias voltage (VBIAS) should be set to 2.5V, and the bias current (IBIAS) should be set to 10 mA.
  • The TQP3M9035 can handle up to 38 dBm of input power, but it's recommended to operate at a maximum of 36 dBm to ensure reliable operation and minimize the risk of damage.
  • Check the power supply voltage and current, ensure proper PCB layout and decoupling, and verify that the input and output ports are properly terminated. Use a spectrum analyzer to check for spurious signals or oscillations.
  • Yes, the TQP3M9035 is designed for high-reliability applications and is qualified to the automotive AEC-Q100 standard. It's suitable for use in harsh environments and critical systems.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TQP3M9035 Overview

Use the download button to access the TQP3M9035 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQP3M, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
