TQP3M9036 - Qorvo

Description: RF Amplifier 400-2000MHz NF.45dB Gain 19dB @.9GHz LNA

Download TQP3M9036 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

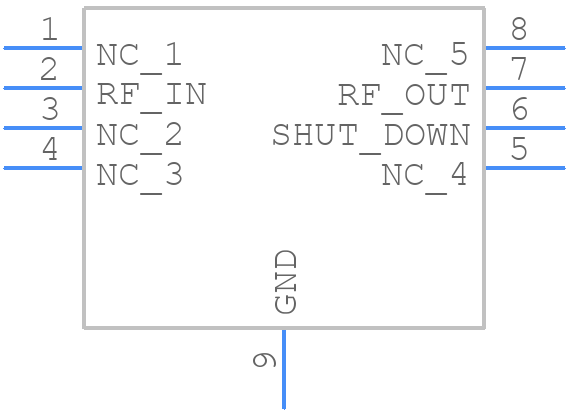

Symbol
TQP3M9036 - Qorvo - PCB symbol
click to zoom
PCB Footprints
TQP3M9036 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - QFN DFN 8
click to zoom
3D Models
TQP3M9036 - Qorvo - 3D model - Small Outline No-lead - QFN DFN 8
click to zoom

TQP3M9036 Details

  • Manufacturer Part Number:

    TQP3M9036

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • ECCN Code:

    5A991.B

  • Manufacturer:

    Qorvo

  • YTEOL:

    8

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

TQP3M9036 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output ports should be separated by at least 10 mm to minimize coupling.
  • The device requires a single 3.3V power supply, and the VCC pin should be decoupled with a 10 nF capacitor to ground. The bias voltage (VBIAS) should be set to 1.5V using a voltage divider or a dedicated voltage regulator.
  • The maximum input power is +20 dBm, but it's recommended to operate at +15 dBm or lower to ensure optimal performance and prevent damage to the device.
  • The device can be optimized for a specific frequency band by adjusting the external matching components (e.g., inductors, capacitors) and the bias voltage (VBIAS). Consult the application note or contact Qorvo's technical support for guidance.
  • The operating temperature range is -40°C to +85°C, but the device's performance may degrade at extreme temperatures. Consult the datasheet for temperature-related specifications and derating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQP3M9036 Overview

Use the download button to access the TQP3M9036 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQP3M, or try a keyword search, such as Cellular Telephone Circuits

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
