TQP7M9104 - Qorvo

Description: RF Amplifier 700-4000MHZ 5VOLT GAIN 15.8DB NF 4.4DB

Download TQP7M9104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

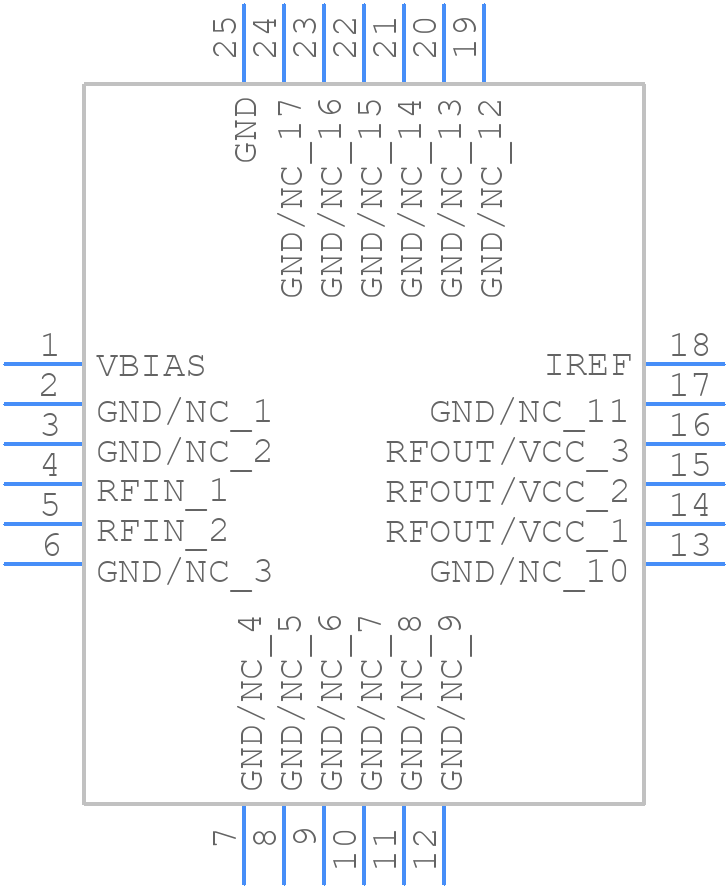

TQP7M9104 - Qorvo - PCB symbol
click to zoom
PCB Footprints
TQP7M9104 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TQP7M9104-1
click to zoom
3D Models
TQP7M9104 - Qorvo - 3D model - Quad Flat No-Lead - TQP7M9104-1
click to zoom

TQP7M9104 Details

  • Manufacturer Part Number:

    TQP7M9104

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, GREEN, PLASTIC, MO-220VGGC, SMT, QFN-24

  • ECCN Code:

    5A991.B

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.73

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15.8 dB

  • Input Power-Max (CW):

    30 dBm

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • VSWR-Max:

    10

TQP7M9104 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The device requires a single 5V supply voltage, and the VCC pin should be decoupled with a 10nF capacitor to ground. The bias voltage (VBIAS) should be set to 2.5V, and the VBIAS pin should be decoupled with a 10nF capacitor to ground.
  • The TQP7M9104 can handle up to 30 dBm of input power, but it's recommended to operate at 20 dBm or less to ensure optimal performance and reliability.
  • Check the power supply voltage and ensure it's within the recommended range. Verify that the input and output tracks are properly terminated and matched. Use a spectrum analyzer to check for spurious signals or harmonics. Consult the datasheet and application notes for more troubleshooting tips.
  • Yes, the TQP7M9104 can be used in a push-pull configuration, but it requires careful design and layout to ensure proper operation. Consult the datasheet and application notes for more information on push-pull configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQP7M9104 Overview

Use the download button to access the TQP7M9104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQP7M, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
