TQP7M9106 - Qorvo

Description: RF Amplifier IC CDMA, LTE, W-CDMA 50MHz ~ 1.5GHz 24-QFN (4x4), 4.75V ~ 5.25V

Download TQP7M9106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

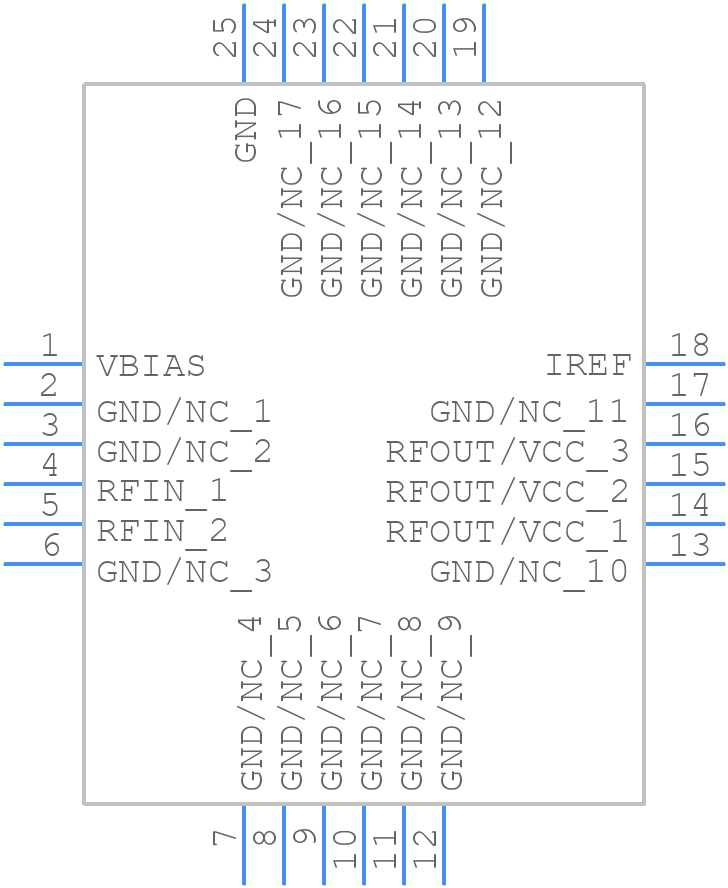

Symbol
TQP7M9106 - Qorvo - PCB symbol
click to zoom
PCB Footprints
TQP7M9106 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Pin 4x4 mm QFN_2026
click to zoom
3D Models
TQP7M9106 - Qorvo - 3D model - Quad Flat No-Lead - 24 Pin 4x4 mm QFN_2026
click to zoom

TQP7M9106 Details

  • Manufacturer Part Number:

    TQP7M9106

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ANTIMONY, HALOGEN, PFOS, SVHC, TBBP-A FREE AND ROHS COMPLIANT, SURFACE MOUNT, QFN-24

  • ECCN Code:

    5A991.B

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.95

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    19 dB

  • Input Power-Max (CW):

    30 dBm

  • Operating Frequency-Max:

    1500 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • VSWR-Max:

    10

TQP7M9106 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output ports should be separated by at least 10 mm to minimize coupling.
  • The device requires a single 5V supply voltage, and the VCC pin should be decoupled with a 10 nF capacitor to ground. The bias voltage (VBIAS) should be set to 2.5V, and the bias current (IBIAS) should be set to 10 mA.
  • The TQP7M9106 is designed to operate up to 7 GHz, but the maximum operating frequency may vary depending on the specific application and PCB layout. It's recommended to consult with Qorvo's application engineers for specific guidance.
  • The device has a maximum junction temperature of 150°C. A thermal pad is provided on the bottom of the package, and it's recommended to attach a heat sink or thermal interface material to dissipate heat. The PCB should also be designed to minimize thermal resistance.
  • The input and output ports of the TQP7M9106 require matching networks to achieve optimal performance. Qorvo provides recommended matching networks in the datasheet, but custom matching networks may be required depending on the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQP7M9106 Overview

Use the download button to access the TQP7M9106 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQP7M, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
