- Part Number TQP9107
- Manufacturer Qorvo
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TQP9107-1
- Released Date Dec 20, 2019
- Last Modified Date Mar 21, 2025 9:52 AM UTC
- Pinout / Pin List Click Here (Member Only)
TQP9107 Details
-
Manufacturer Part Number:
TQP9107
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A991.B
-
Manufacturer:
Qorvo
-
YTEOL:
6.94
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
28.8 dB
-
Input Power-Max (CW):
7 dBm
-
JESD-609 Code:
e4
TQP9107 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
-
Use the lowest possible supply voltage, disable the internal voltage regulator if not needed, and use the power-down mode when the device is not in use. Also, optimize the bias current and the output power to minimize power consumption.
-
The TQP9107 can operate from -40°C to 105°C, but the optimal operating temperature range is between 0°C to 85°C for best performance and reliability.
-
Use a logic analyzer or an oscilloscope to check the input and output signals. Verify the power supply voltage and the bias current. Check for any signs of overheating or physical damage. Consult the datasheet and application notes for troubleshooting guides.
-
Yes, but the device is optimized for 50 ohm systems. For non-50 ohm systems, you may need to use external matching networks or impedance matching circuits to ensure optimal performance.
Trust Checks
Expert Contribution
System Verified
Community Approved
TQP9107 Overview

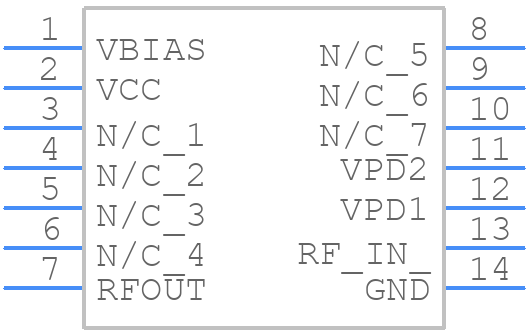

Use the download button to access the TQP9107 schematic symbol, PCB footprint, and 3D model.
