- Part Number TQP9113
- Manufacturer Qorvo
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - TQP9113
- Released Date May 9, 2024
- Last Modified Date Jun 25, 2024 8:07 AM UTC
- Pinout / Pin List Click Here (Member Only)
TQP9113 Details
-
Manufacturer Part Number:
TQP9113
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
5A991.B
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
RF/Microwave Device Type:
NARROW BAND MEDIUM POWER
TQP9113 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
-
Use a voltage regulator to set VCC to 3.3V. Set VBIAS to 2.5V using a resistive divider. Adjust the bias current to 10mA for optimal efficiency. Monitor the device temperature to prevent overheating.
-
Use a pi-network or a T-network for input matching. For output matching, use a series inductor and a shunt capacitor. Optimize the component values using a simulation tool or a network analyzer.
-
Use a high-impedance input matching network to minimize noise. Add a noise-reducing component, such as a ferrite bead, to the VCC line. Ensure good PCB layout and grounding practices to minimize electromagnetic interference.
-
The maximum operating temperature of the TQP9113 is 125°C. However, it's recommended to operate the device at a temperature below 100°C to ensure optimal performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
TQP9113 Overview

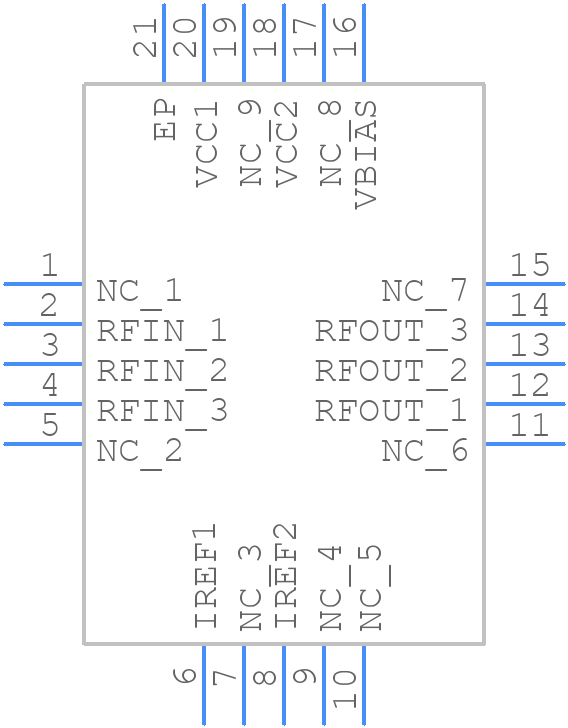

Use the download button to access the TQP9113 schematic symbol, PCB footprint, and 3D model.
