Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1153, which includes guidelines for thermal pad connection, PCB thickness, and heat sink design.
Qorvo recommends using their proprietary matching network design tool, QorvoMatch, to optimize the input and output matching networks for maximum power and efficiency. The tool provides a user-friendly interface to design and simulate the matching networks.
Although the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power output by 1 dB for every 10°C above 70°C to ensure reliable operation and prevent thermal runaway.
Qorvo provides a troubleshooting guide in their application note AN-1154, which includes steps to identify and resolve common issues such as output power reduction, frequency drift, and overheating. Additionally, Qorvo's technical support team is available to assist with debugging and troubleshooting.
Yes, the TQP9309TR13 is a sensitive device and requires proper ESD protection and handling. Qorvo recommends following the guidelines outlined in their application note AN-1155, which includes information on ESD protection, handling, and storage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TQP9309TR13 Overview

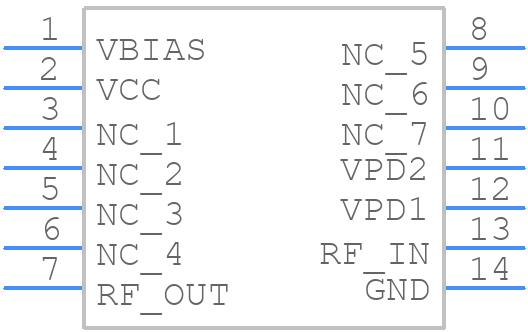

Use the download button to access the TQP9309TR13 schematic symbol, PCB footprint, and 3D model.
