- Part Number TQQ7301
- Manufacturer Qorvo
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TQQ7301-2
- Released Date Jan 23, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQQ7301 Details
-
Manufacturer Part Number:
TQQ7301
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
5A991.B
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Additional Feature:
TR, 7 INCH
-
Center or Cutoff Frequency (fo/fc):
1950 MHz
-
Filter Type:
SAW FILTER
-
Height:
1.02 mm
-
Input Impedance:
50 OHM
TQQ7301 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
-
Qorvo provides a component selection guide in their datasheet, which includes recommended values for capacitors, resistors, and inductors. Additionally, the application note AN-2171 provides more detailed guidance on component selection and layout considerations.
-
The TQQ7301 is rated for operation from -40°C to +125°C, but Qorvo recommends derating the device for reliable operation above 100°C. Consult the datasheet for more information on temperature derating.
-
Qorvo provides troubleshooting guidelines in their application note AN-2171, which includes common issues, symptoms, and solutions. Additionally, Qorvo's technical support team can provide further assistance and guidance.
-
Yes, the TQQ7301 is compatible with lead-free soldering processes. Qorvo ensures that their devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and are compatible with lead-free soldering processes.
Trust Checks
Expert Contribution
System Verified
Community Approved
TQQ7301 Overview

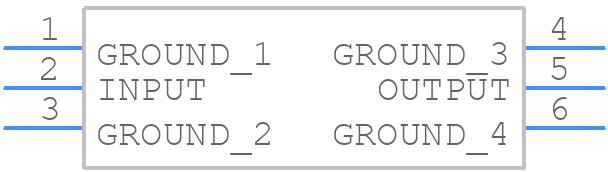

Use the download button to access the TQQ7301 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQQ73,
or try a keyword search, such as SAW Filters
