The recommended land pattern for TR3C106K025C0600 can be found in Vishay's application note 'Land Pattern Recommendations for Vishay Tantalum Capacitors' (document number 40171). It provides detailed guidelines for designing a reliable and efficient land pattern for this component.
While the datasheet provides some information on the capacitor's impedance and ESR, it's essential to consider the component's behavior under high-frequency conditions. Vishay's application note 'Tantalum Capacitor Frequency Response' (document number 40172) provides more detailed information on the frequency response of tantalum capacitors, including the TR3C106K025C0600.
According to Vishay's guidelines, the maximum allowable voltage derating for TR3C106K025C0600 is 50% of the rated voltage. This means that if the capacitor is rated for 6.3V, the maximum allowable voltage derating would be 3.15V. However, it's essential to consult with Vishay's application engineers or the datasheet for specific guidance on voltage derating for your particular application.
The TR3C106K025C0600 is rated for operation up to 125°C, but it's essential to consider the component's temperature derating and reliability under high-temperature conditions. Vishay's application note 'Tantalum Capacitor Reliability and Temperature Derating' (document number 40173) provides more information on the temperature derating and reliability of tantalum capacitors, including the TR3C106K025C0600.
Vishay provides guidelines for handling and assembling tantalum capacitors, including the TR3C106K025C0600, in their application note 'Tantalum Capacitor Handling and Assembly' (document number 40174). This document covers topics such as component handling, PCB design, and rework procedures to ensure reliable assembly and minimize the risk of damage or failure.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TR3C106K025C0600 Overview

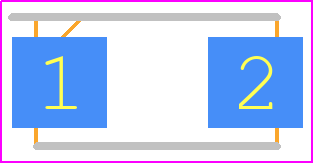

Use the download button to access the TR3C106K025C0600 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TR3C1,
or try a keyword search, such as Tantalum Capacitors
