TR3C106M016F0450 - Vishay

Description: Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT(TM), Molded Case, Low ESR

Download TR3C106M016F0450 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TR3C106M016F0450 - Vishay - PCB symbol
click to zoom
PCB Footprints

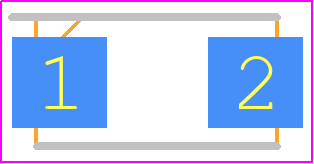

TR3C106M016F0450 - Vishay PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - CASE CODE C
click to zoom
3D Models
TR3C106M016F0450 - Vishay - 3D model - Capacitor Moulded Polarised - CASE CODE C
click to zoom

TR3C106M016F0450 Details

  • Manufacturer Part Number:

    TR3C106M016F0450

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Israel, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.03

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    10 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    450 mΩ

  • Height:

    2.5 mm

  • JESD-609 Code:

    e0

  • Leakage Current:

    0.0016 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    196 mA

  • Size Code:

    2413

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TR3C106M016F0450 Frequently Asked Questions (FAQs)

  • Vishay recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
  • Yes, the TR3C106M016F0450 is a high-frequency capacitor with a self-resonant frequency (SRF) of 1.5 GHz, making it suitable for high-frequency applications such as RF circuits, antennas, and filters.
  • The ESR of the TR3C106M016F0450 capacitor is 0.05 ohms at 100 kHz and 25°C (77°F).
  • The TR3C106M016F0450 capacitor is rated for operation up to 125°C (257°F), but its capacitance and ESR may degrade at higher temperatures. Consult the datasheet and Vishay's application notes for more information.
  • Yes, the TR3C106M016F0450 capacitor is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TR3C106M016F0450 Overview

Use the download button to access the TR3C106M016F0450 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TR3C1, or try a keyword search, such as Tantalum Capacitors
