TR3D107K020C0085 - Vishay

Description: Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT(TM), Molded Case, Low ESR

Download TR3D107K020C0085 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TR3D107K020C0085 - Vishay - PCB symbol
click to zoom
PCB Footprints

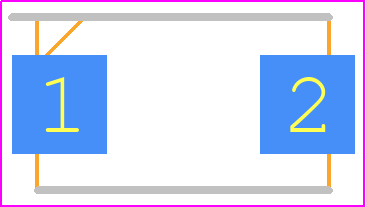

TR3D107K020C0085 - Vishay PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - Case Code D
click to zoom
3D Models
TR3D107K020C0085 - Vishay - 3D model - Capacitor Moulded Polarised - Case Code D
click to zoom

TR3D107K020C0085 Details

  • Manufacturer Part Number:

    TR3D107K020C0085

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Israel, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.98

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    100 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    85 mΩ

  • Height:

    2.8 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.02 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    20 V

  • Ripple Current:

    532 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm
