The recommended PCB footprint for the TR3D336K016C0150 is a rectangular pad with dimensions of 12.7mm x 6.35mm, with a thermal pad in the center. The datasheet provides a recommended land pattern, but it's essential to consult with a PCB design expert to ensure optimal thermal performance.
To ensure reliability in high-temperature applications, it's crucial to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, consider derating the component's power rating and monitoring its operating temperature to prevent overheating.
The maximum allowable voltage derating for the TR3D336K016C0150 is typically 80% of the rated voltage. However, it's recommended to consult with a qualified engineer or Vishay's technical support to determine the appropriate derating factor for your specific application.
While the TR3D336K016C0150 is suitable for high-frequency applications, it's essential to consider the component's parasitic inductance and capacitance, as well as the PCB layout and design. Consult with a qualified engineer or Vishay's technical support to ensure the component is used within its recommended operating frequency range.
When handling the TR3D336K016C0150's thermal interface material, it's essential to follow proper assembly procedures to prevent damage or contamination. Ensure the material is stored in a clean, dry environment, and handle it with gloves or a vacuum pick-up tool to prevent oil from human skin from affecting its performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TR3D336K016C0150 Overview

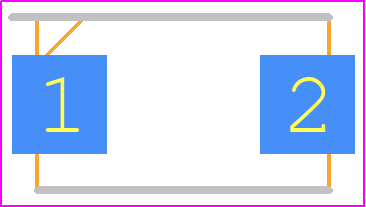

Use the download button to access the TR3D336K016C0150 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TR3D3,
or try a keyword search, such as Tantalum Capacitors
