TR3D686K020C0150 - Vishay

Description: Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT(TM), Molded Case, Low ESR

Download TR3D686K020C0150 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TR3D686K020C0150 - Vishay - PCB symbol
click to zoom
PCB Footprints

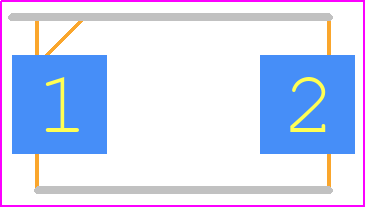

TR3D686K020C0150 - Vishay PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - Case Code D
click to zoom
3D Models
TR3D686K020C0150 - Vishay - 3D model - Capacitor Moulded Polarised - Case Code D
click to zoom

TR3D686K020C0150 Details

  • Manufacturer Part Number:

    TR3D686K020C0150

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Israel, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.98

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    68 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    150 mΩ

  • Height:

    2.8 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0136 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    20 V

  • Ripple Current:

    400 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

TR3D686K020C0150 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TR3D686K020C0150 can be found in the Vishay Intertechnologies' application note AN10343, which provides guidelines for PCB layout and assembly.
  • The TR3D686K020C0150 has a thermal resistance of 15°C/W. To handle thermal management, ensure good airflow, use a heat sink if necessary, and follow proper PCB design and layout guidelines to minimize thermal impedance.
  • The TR3D686K020C0150 has an operating temperature range of -55°C to +150°C. However, the maximum operating temperature range may vary depending on the specific application and environmental conditions.
  • Yes, the TR3D686K020C0150 is suitable for high-reliability applications. It is built with high-reliability materials and has undergone rigorous testing to ensure its performance and durability.
  • Follow the recommended soldering profile and guidelines provided in the Vishay Intertechnologies' application note AN10343. Ensure the soldering temperature and time are within the specified range to prevent damage to the component.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TR3D686K020C0150 Overview

Use the download button to access the TR3D686K020C0150 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TR3D6, or try a keyword search, such as Tantalum Capacitors
